Description

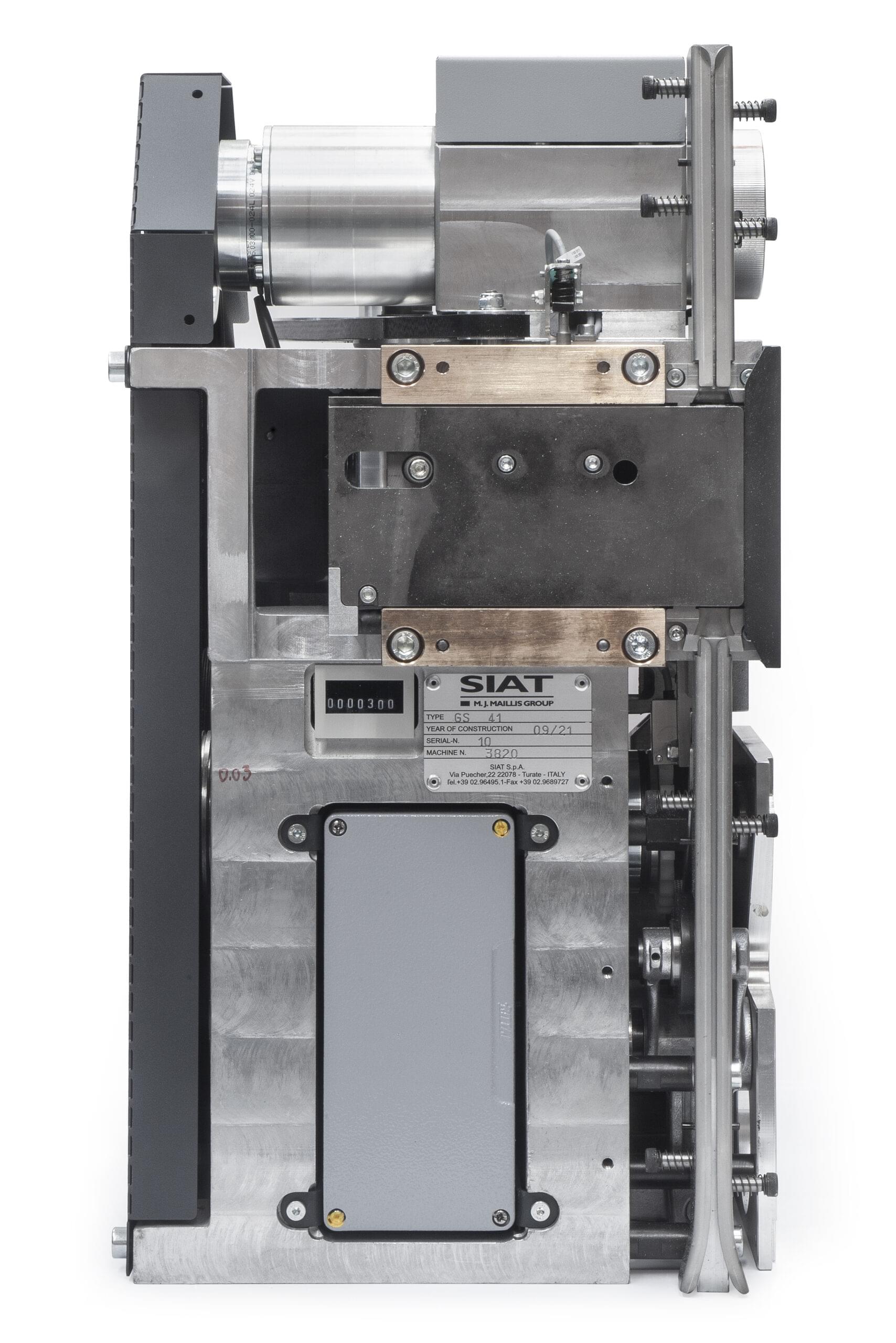

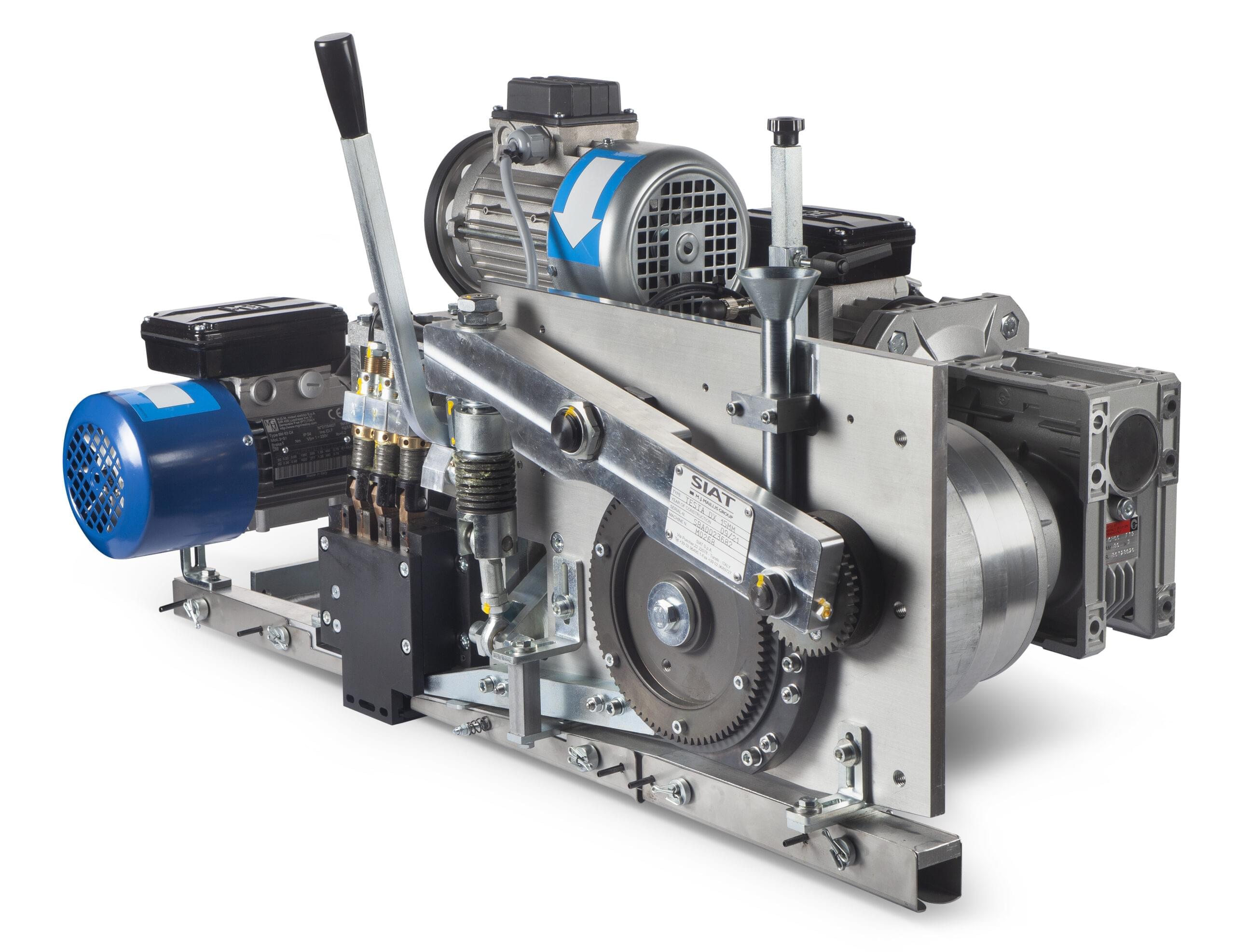

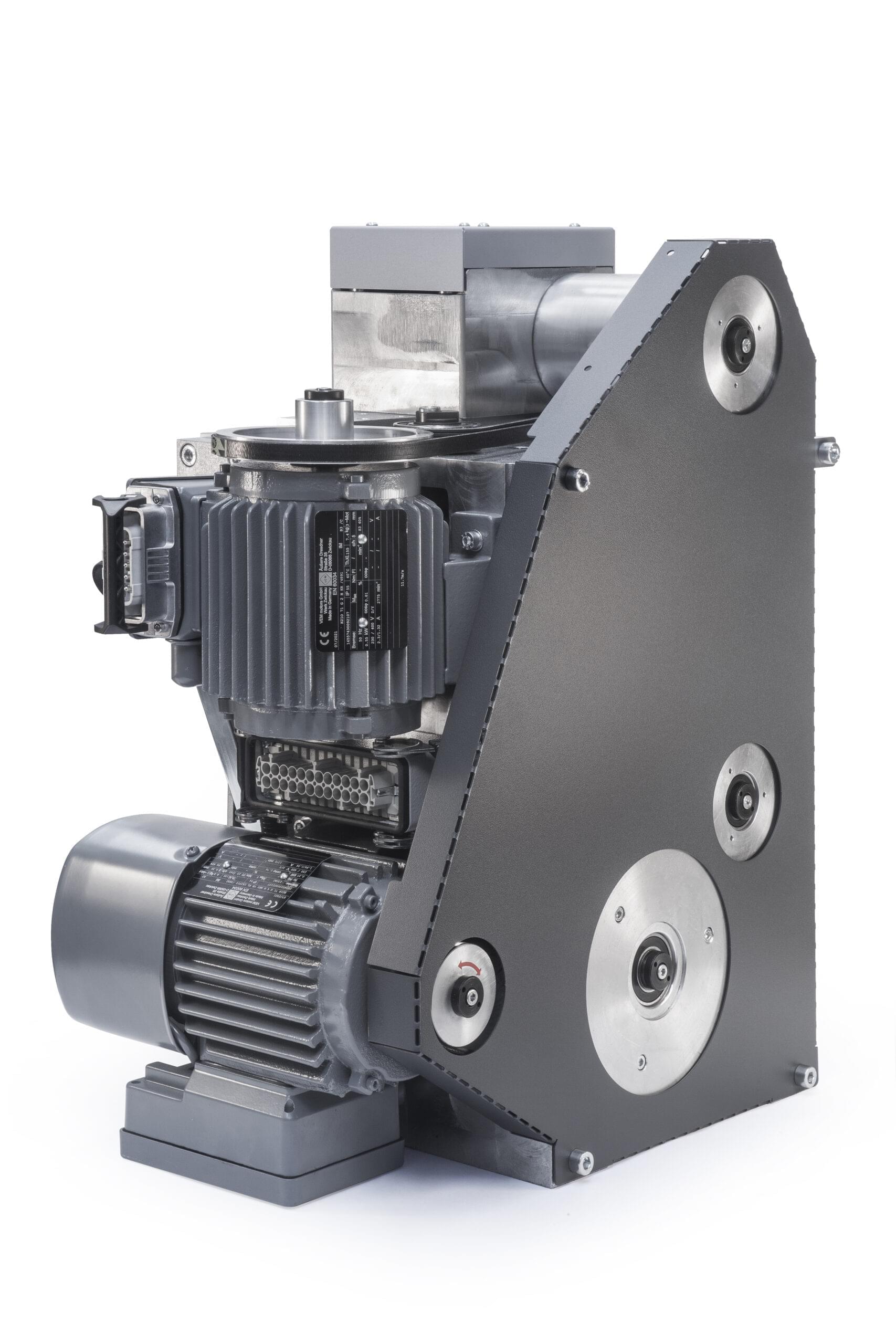

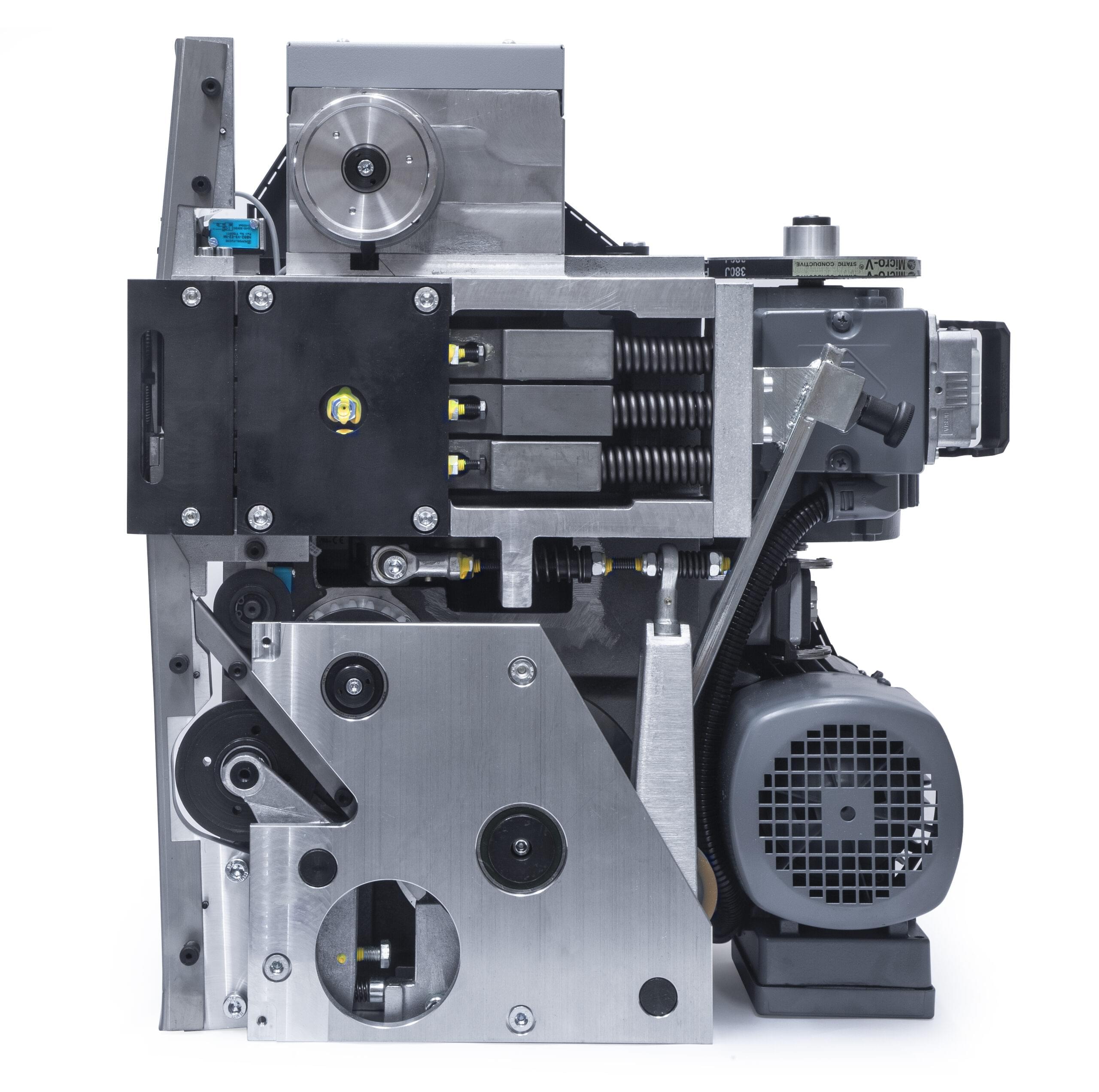

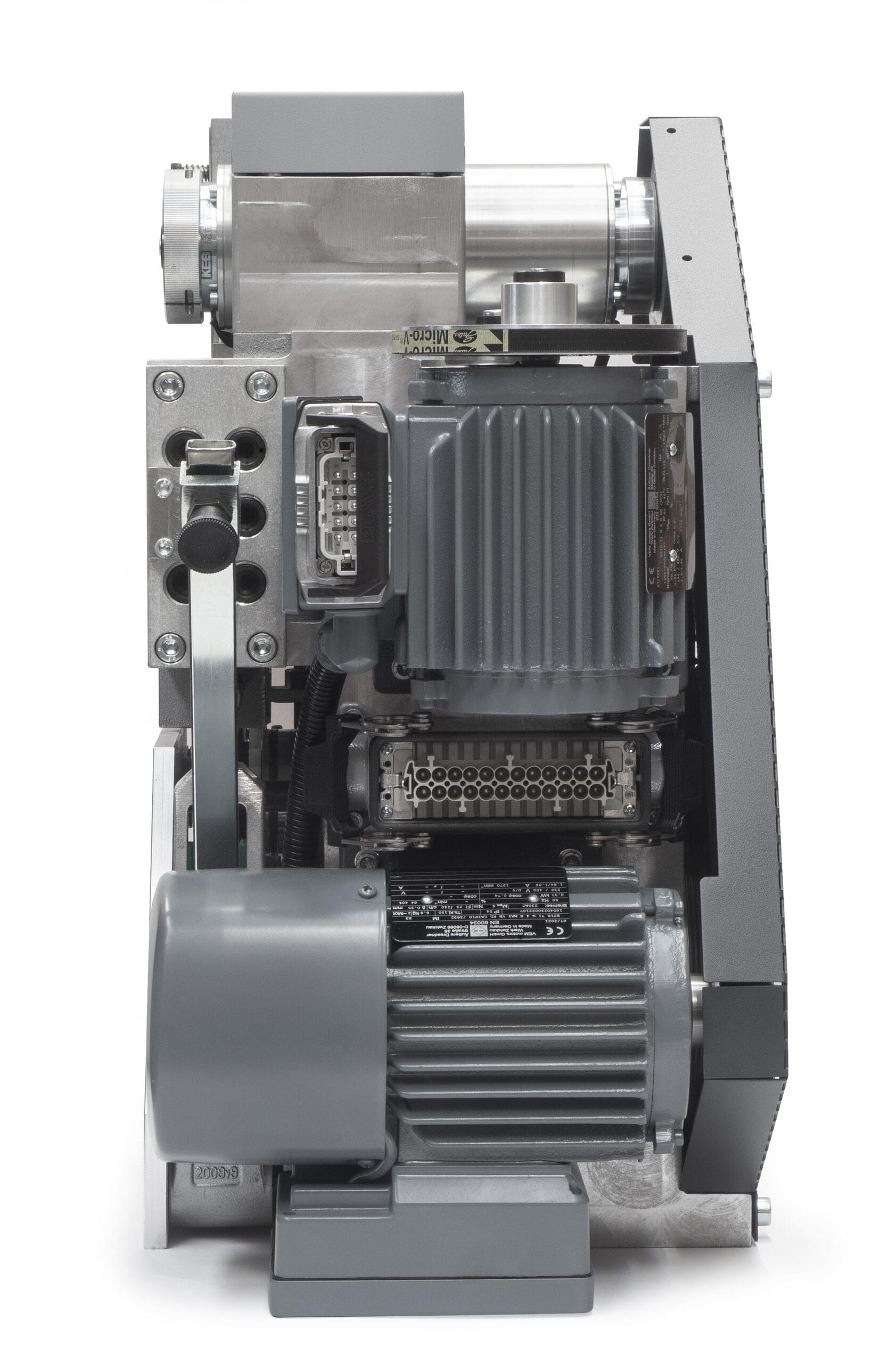

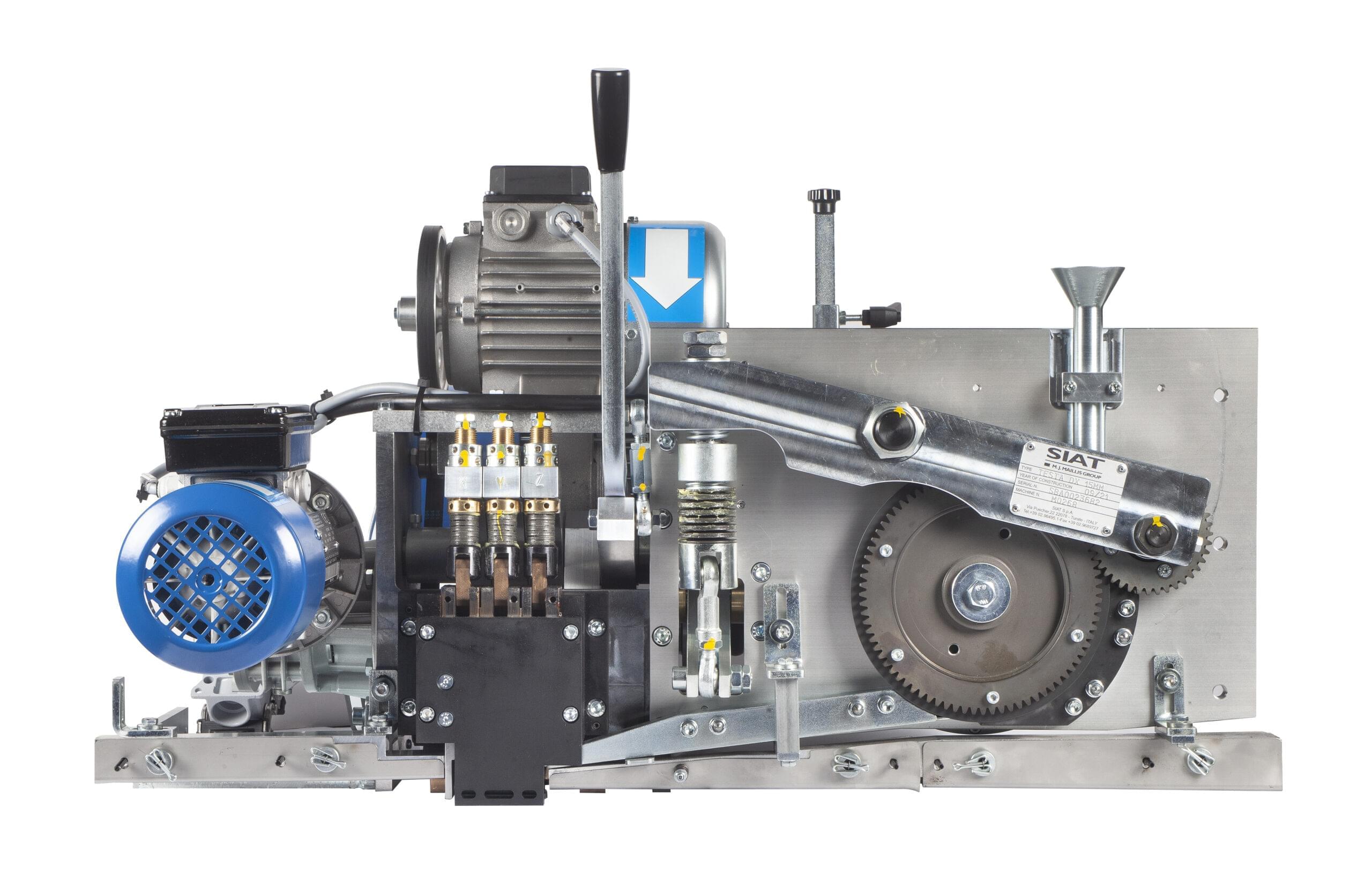

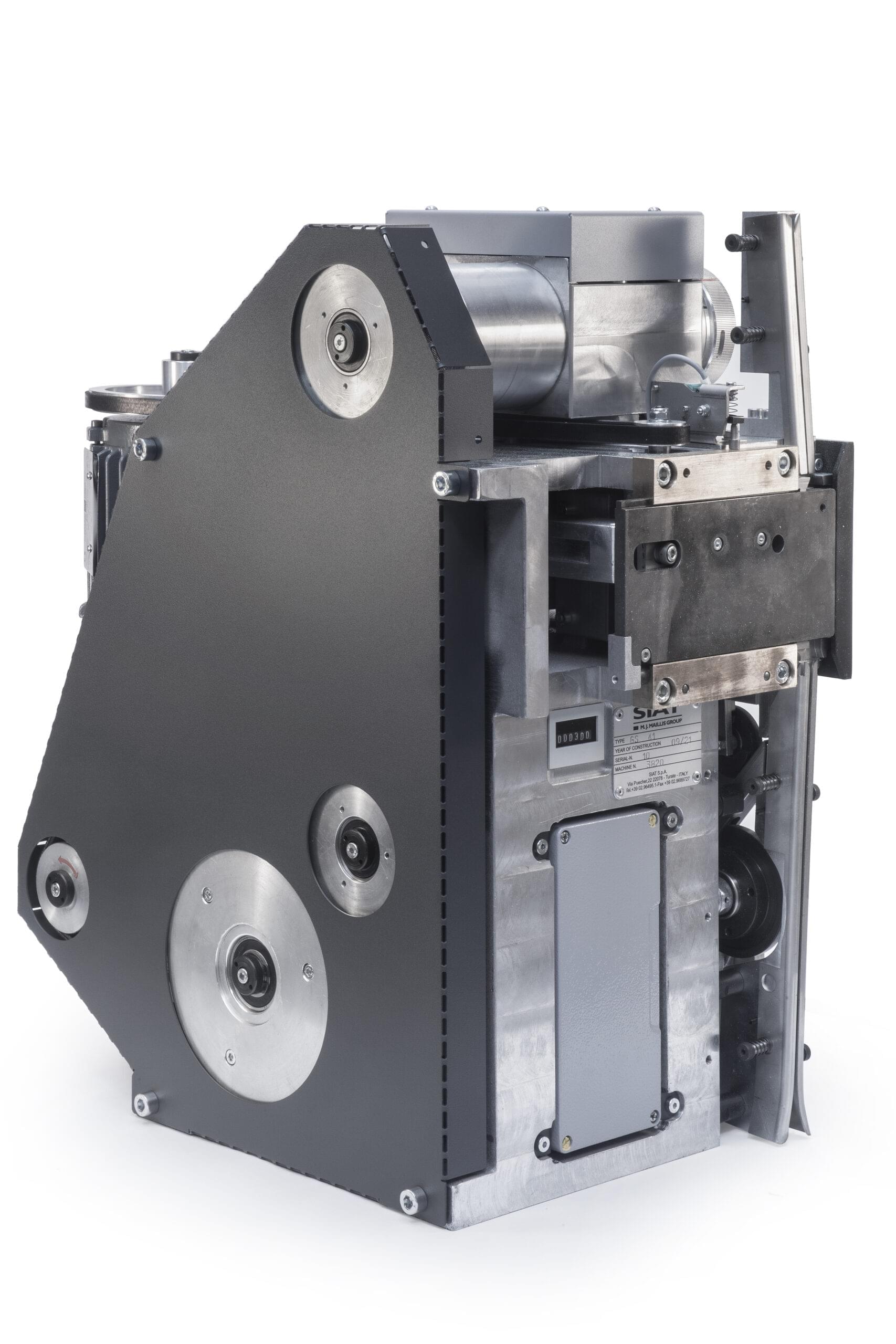

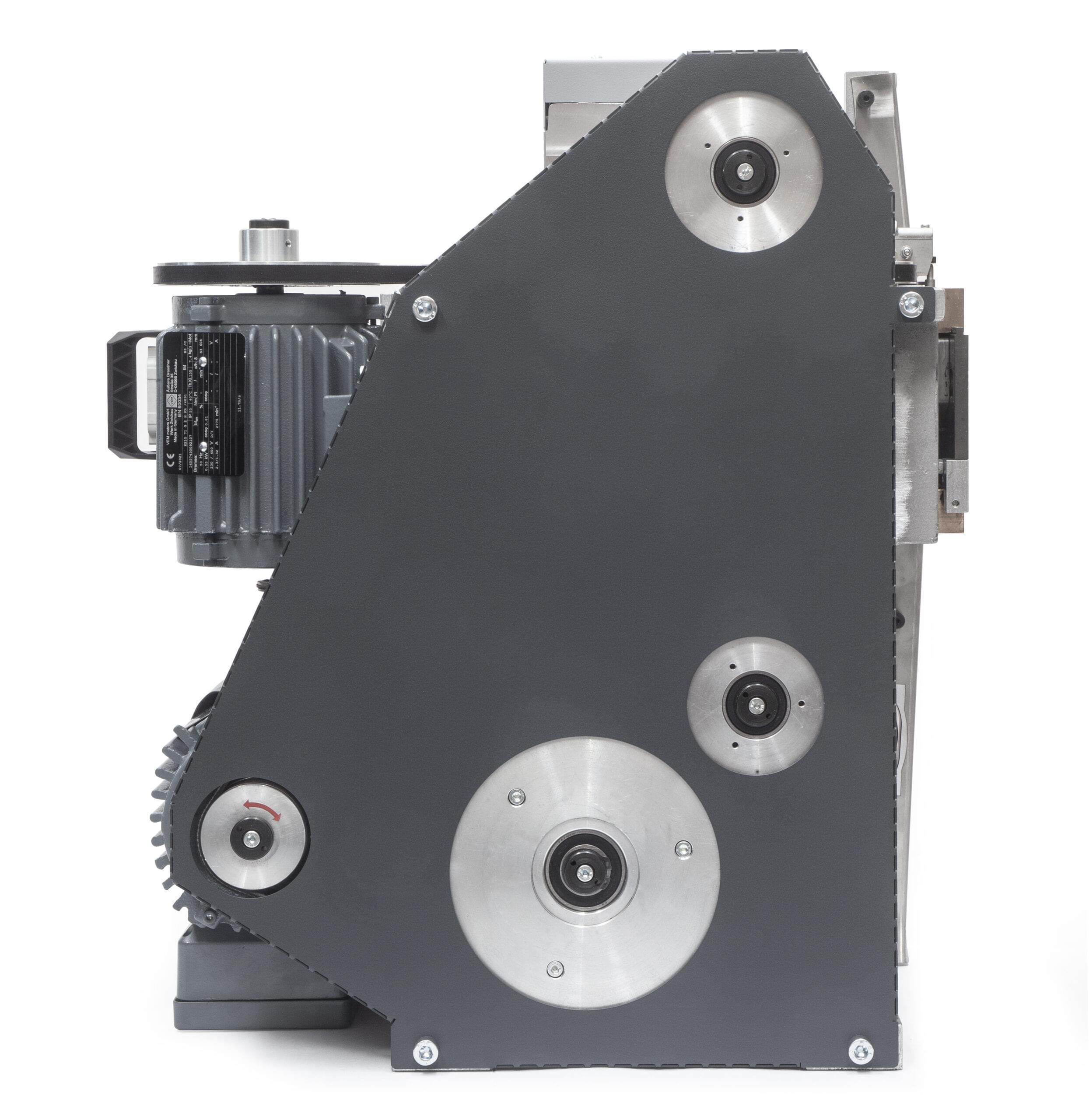

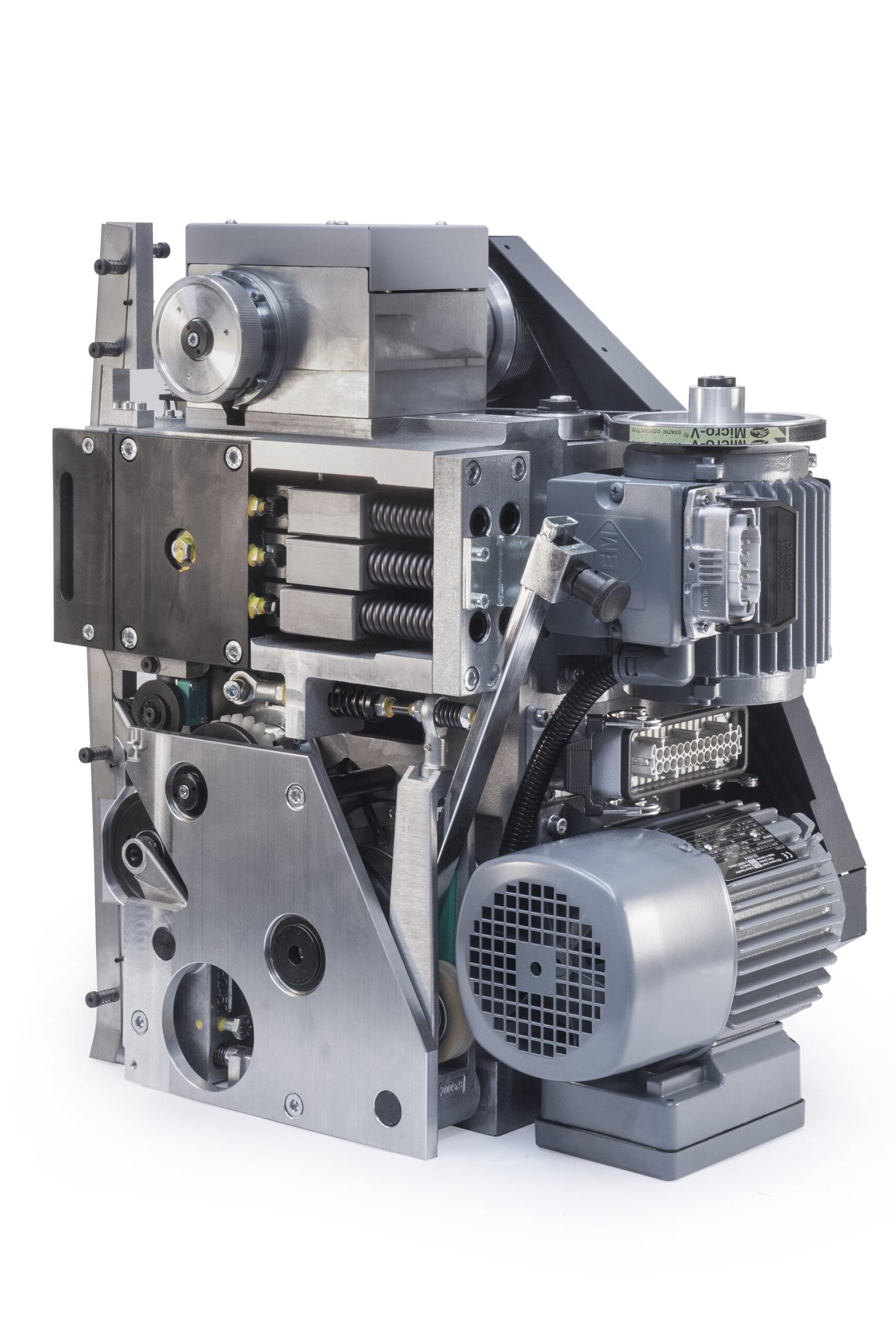

VIBRA™ Heads are designed for fully automatic machines for plastic strapping technology and allow the use of 9mm to 32mm PET and PP strap. The strap welding occurs through a friction weld joint technology that maintains the strap characteristics and grants higher welding efficiency.

Advantages

• Reliability – durable even in rough environments.
• High tensioning force – long elastic extension of the strap suitable for shrinkable products.
• Easy maintenance – easy access to wearing parts.
• Vibration sealing – high welding efficiency, no toxic fumes.
• Strap tension adjustment – mechanical or electrical.
• Easy adaptability – stable 2-sided mounting and easy control integration in the production line.
• Robustness – strong aluminum cast housing.
• Accuracy – precise tension alignment of the strap for the best welding efficiency.
• PLC Control – easily integrated in automatic lines.
• Easy to retrofit – with a compact modular design.

Key Features

• The VIBRA™ S is ideally suited for medium and light duty applications typically found in beverage, paper, corrugated, and logistics. It is available for PET and PP strap and for a strap width from 10 to 16 mm. Available both with powder clutch or inverter, allows to reach a very high speed of launch and recovery of the strap, up to 6 m/s.
• The VIBRA™ S+, typically used for construction, wood, metal sheet and various other demanding industrial applications, is available for both PET and PP 16- and 19-mm wide straps and it is characterized by accurately delivering higher tension to straps with thickness up to 1.27 mm with an elevated ultimate strength.
• The VIBRA™ M represents a well-balanced solution for light and medium duty applications even for areas where it is difficult to provide maintenance. Completely electromechanical it is available for a wide range of PET and PP straps with a width from 10 to 19 mm.
• The VIBRA™ MAX, in the demanding field of very heavy-duty strapping applications, thanks to its high tension and excellent sealing efficiency, it allows reaching performances comparable to those of steel straps by using PET straps with a width of 25 or 32 mm. The individual, AC motors drive technology eliminate the need of clutches and grants ease of maintenance.

Ideal for these industries

• Wine & Spirits.
• Construction.
• Household, Consumer & Personal Care.
• Food & Dairy.
• Logistics Industry.
• Glass & Metal Industry.
• Wood Industry.
• E-Commerce.
