Description

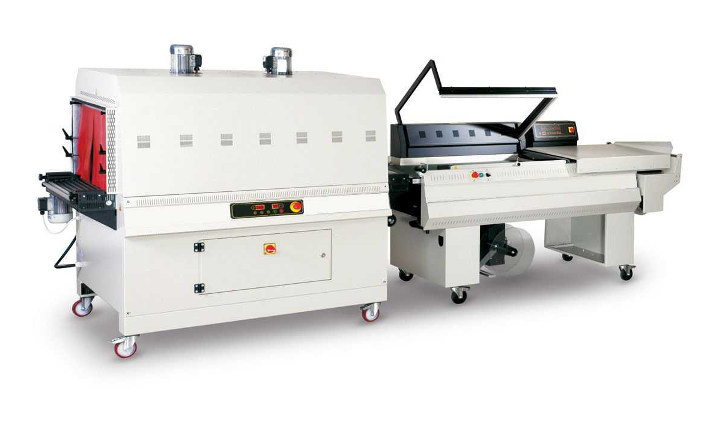

Modular semi-automatic packing machine. It consists of the TS80A packing machine and the TT60 heat shrink tunnel.

Advantages

• Flexibility: 9 customizable programs.
• High production (up to 900 pieces/hour).
• Machines that can pack using a wide range of heat shrink films.
• Excellent thermal insulation.

Key Features

• Modular machine: packing machine TS80A and heat shrink tunnel TT60.
• Dimensions of the sealing bars: 840x600mm.
• Maximum dimensions of the heat shrink film bobbin = Ø300 x 800 mm.
• Dimensions of the machines (with open structure): 1.000 mm: 2070x960x1510mm (TS80) & 2770x1160x1640mm (TT60).
• Weight of the machines (net/mixed): 1.5 cm: 243/290 kg (TS80) - 415/483 kg (TT60).
• Available tunnel entrance opening: 690x390mm.
• 9 customizable programs.
• Sealing bar with double teflon cover with shock absorbing system.
• Continuous cycle cooling system of the sealing bar.
• Manual or automatic operation.
• Adjustable workbench height (TS80).
• Temperature setting.
• Motorized conveyor belt with adjustable speed (TS80).
• Motorized waste wrapper.
• Digital control panel with 6 programs.
• Machine mounted on wheels with the possibility of locking them.
• Power supply: 200/208/230/380 V - 3ph - 2.3 kW (TS80) - 14kW (TT60).

Options

• Stainless steel workbench (TS80).
• Bars with ceramic parts for polyethylene (TS80).
• Exit roller conveyors for unloading products when the station is isolated (TS80).
• Teflon carrier (TT60).
• Plexiglas protection kit at the entrance and exit of the tunnel (TT60).
