Description

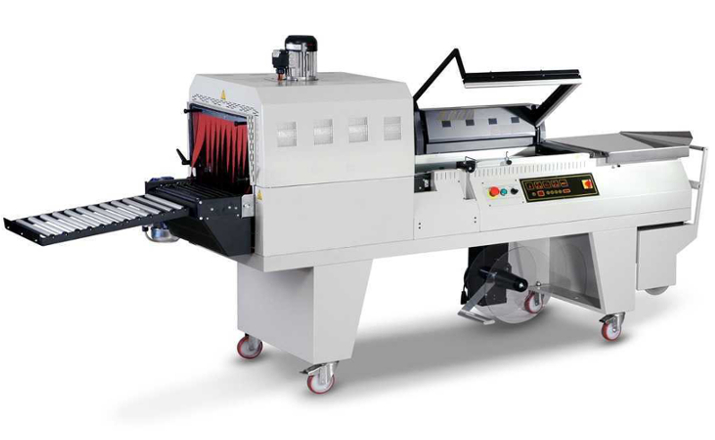

Semi-automatic packing machine equipped with conveyor belt and integrated heat shrink tunnel with exit conveyor. Machine suitable for higher production and for most applications.

Advantages

• One unit structure.
• Sealing bar with patented safety system.
• High production speed (up to 900 pieces/hour).

Key Features

• Sealing rod measurement: 540×400 mm.
• Available tunnel opening: 440×240 mm.
• Maximum bobbin dimensions: Ø350 x 600 mm.
• Machine dimensions (with raised sealing bar): 1.5 mm: 2780x730x1400mm.
• Machine weight (net/mixed): 287/343 kg.
• Digital control with 6 programs.
• Automatic or manual descent of the sealing bar.
• Product unloading transporter.
• Machine mounted on wheels with the possibility of locking them.
• Sealing only or sealing and heat shrinking.
• Sealing bars with closed circuit cooling system and patented sealing system.
• Automatic sealing speed regulator.
• Temperature control with electronic temperature controller.
• Adjustable height of the motorized conveyor belt.
• Motorized waste wrapper.
• Adjustment of the hot air flow inside the tunnel through the diverters.
• Power supply 208/230/380 V - 3ph - 5,7 kW.

Options

• Stainless steel workbench.
• Stainless steel conveyor Length 0.5 m.
• Roller conveyor Length 1 m.
• Heat-shrinkable teflon tunnel zone.
• Film pre-opening system.
