Description

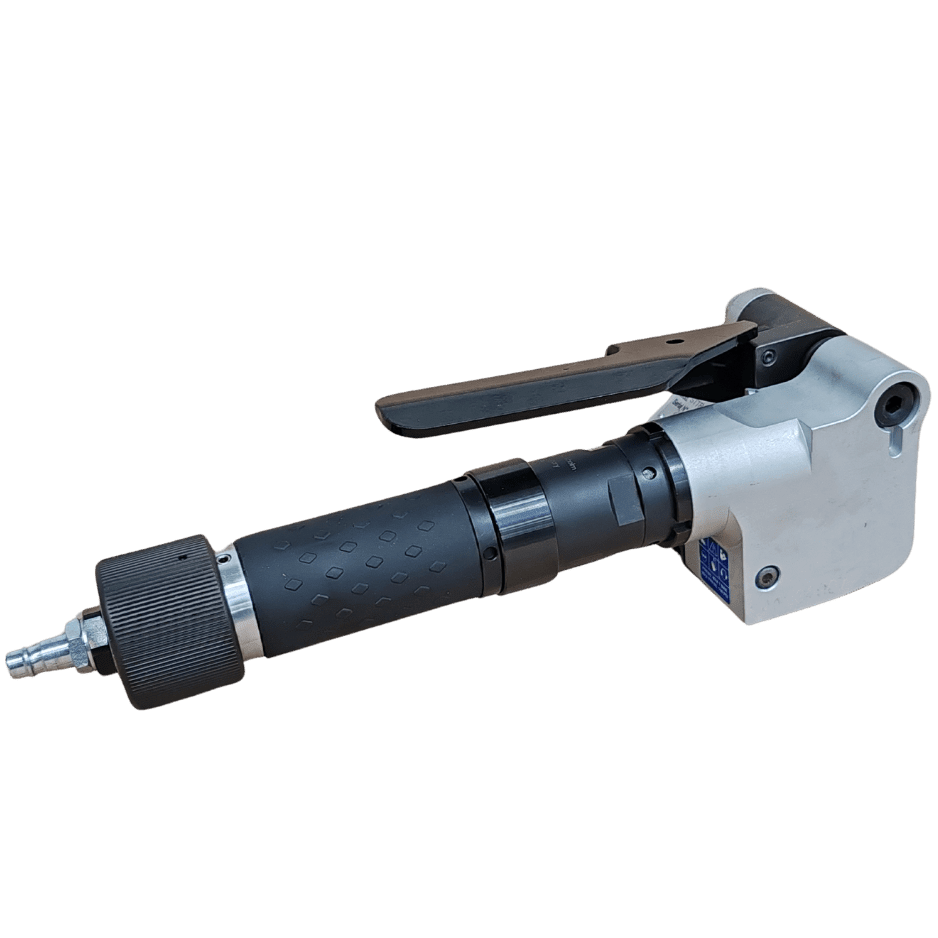

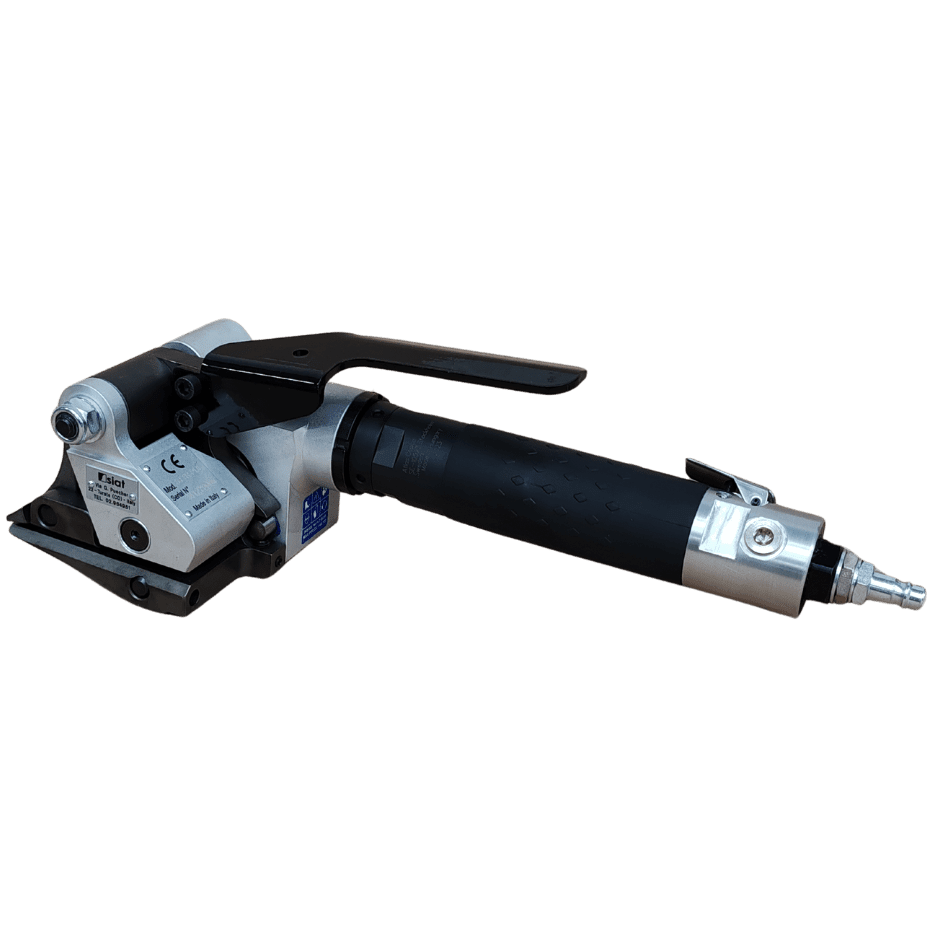

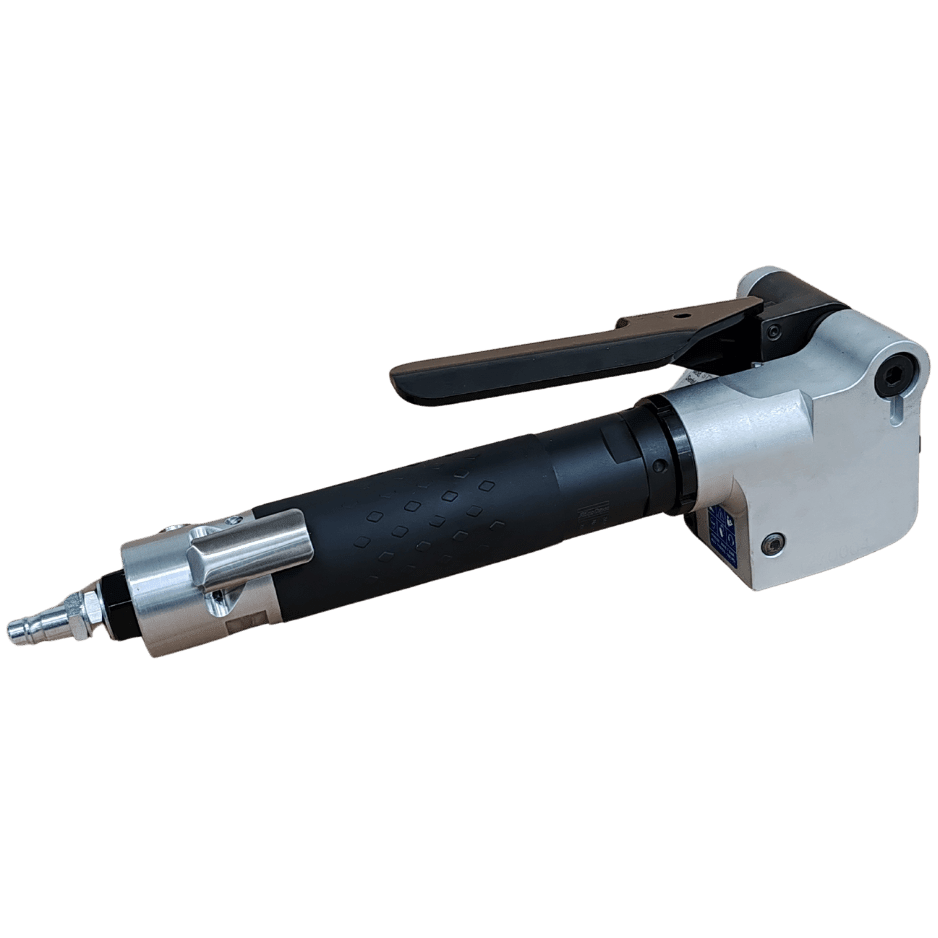

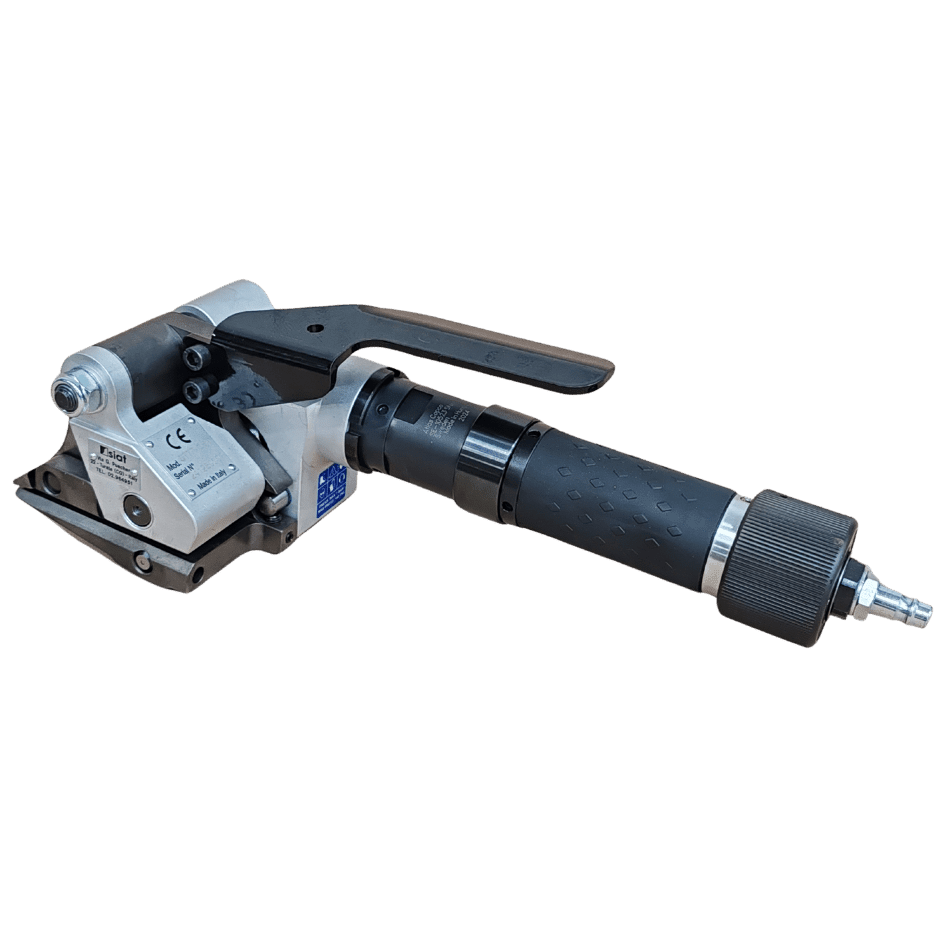

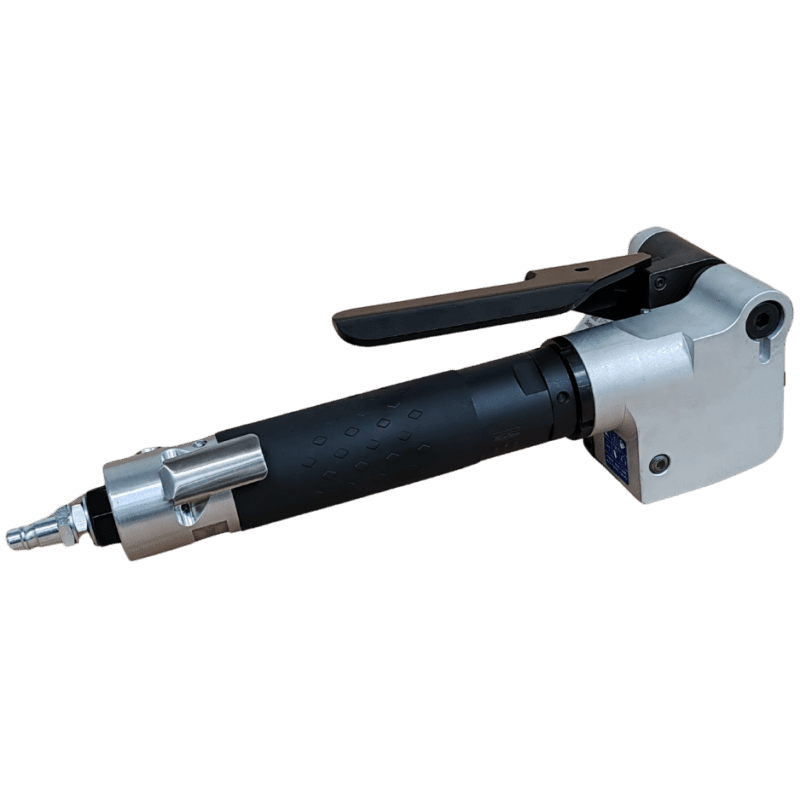

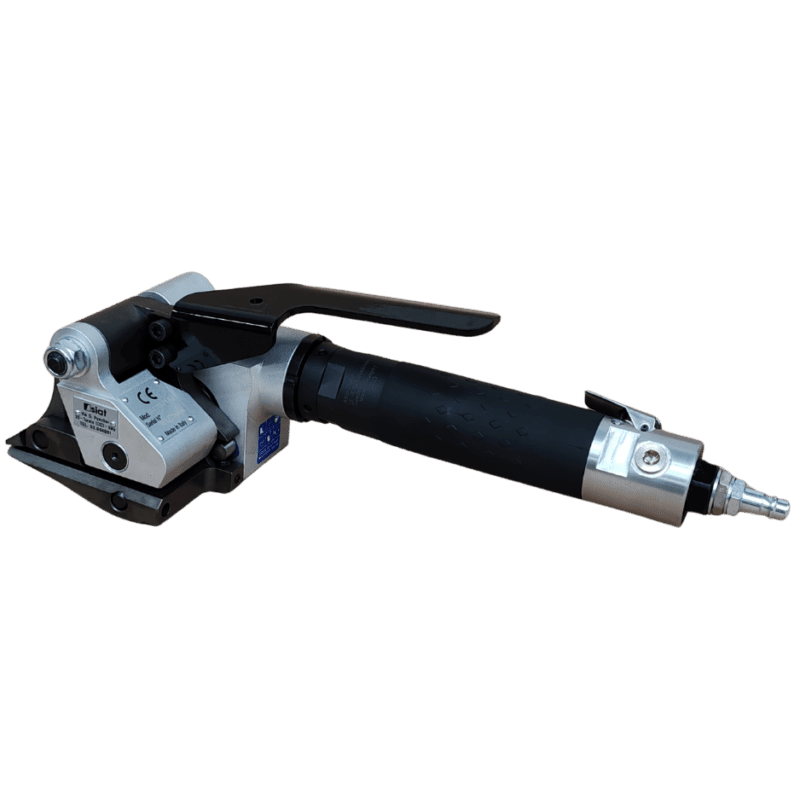

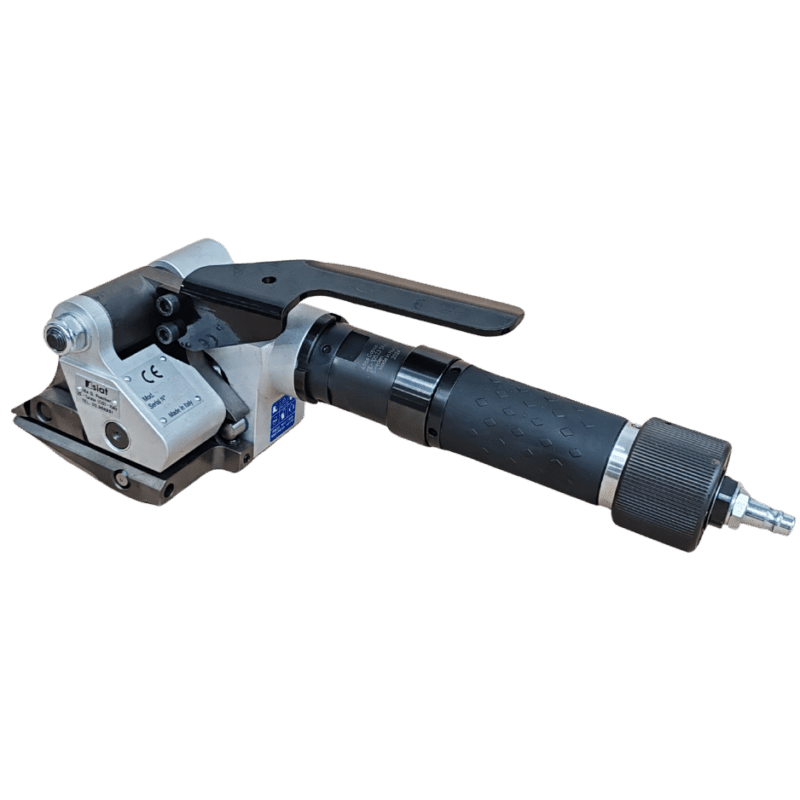

It is a easy to use pneumatic tensioner to be used in conjunction with STP, STP-DN, STPM, SDN models. It is designed to use in heavy industrial applications. It is available as standard with push button version. On request it is available the choke collar version. The tool is available as standard in 3 strap sizes: 19 mm, 25 mm and 32 mm.

Advantages

• Ergonomic & modern design.
• Light & compact.
• Easy to use.
• Equipped with BOSCH motors.

Key Features

• Package type: flat / round surfaces.
• Strap width: from 19 mm up to 32 mm.
• Strap thickness: from 0.6 mm up to 1.1 mm.
• Max. tension: 9000N.
• Max. tensioning speed: 6 m/min.
• Air pressure: 6 – 7 bar max.
• Air consumption: 12 l/s.
• Weight: about 4.2 Kg.

Ideal for these industries

• Glass & Metal Industry.
