Description

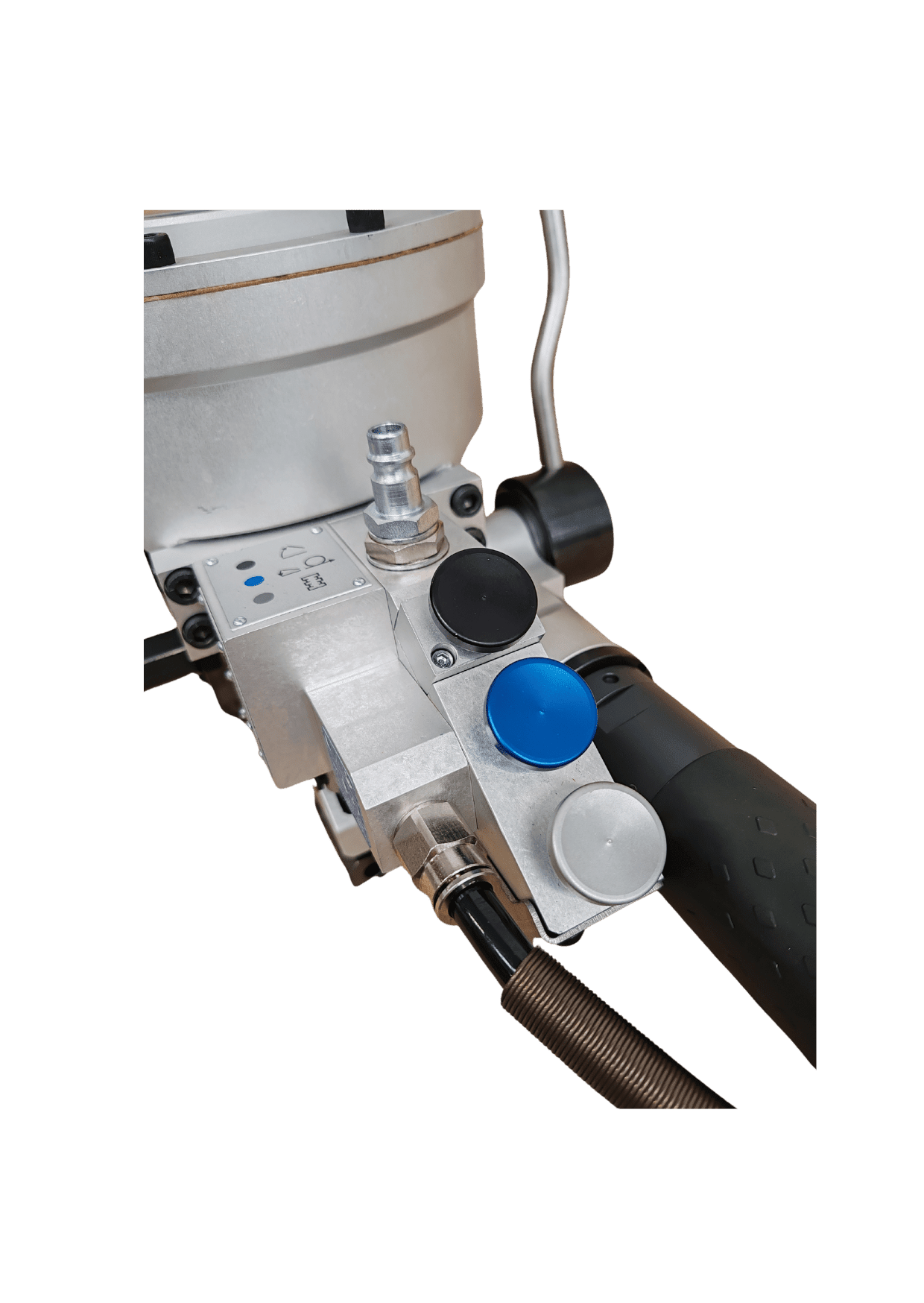

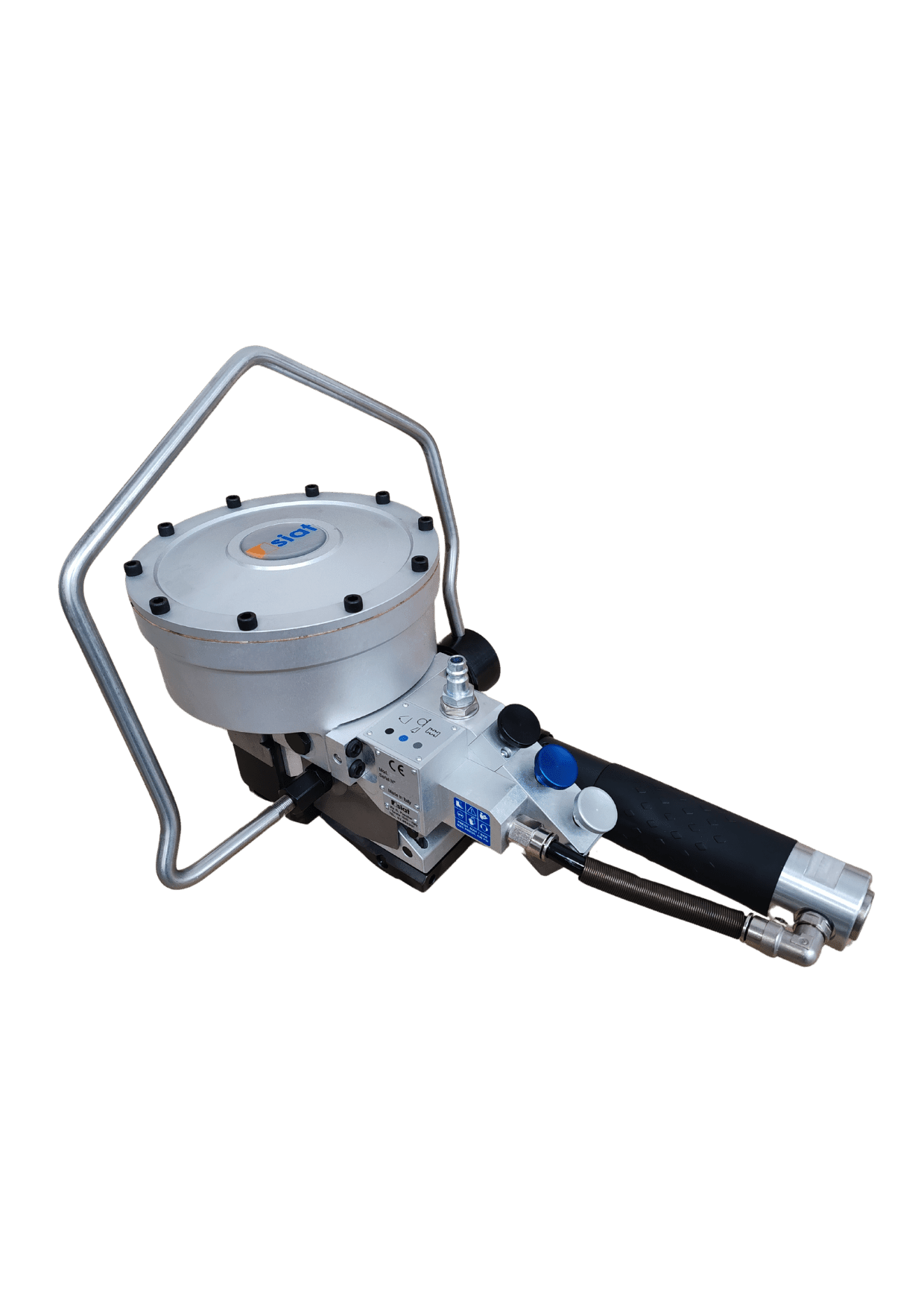

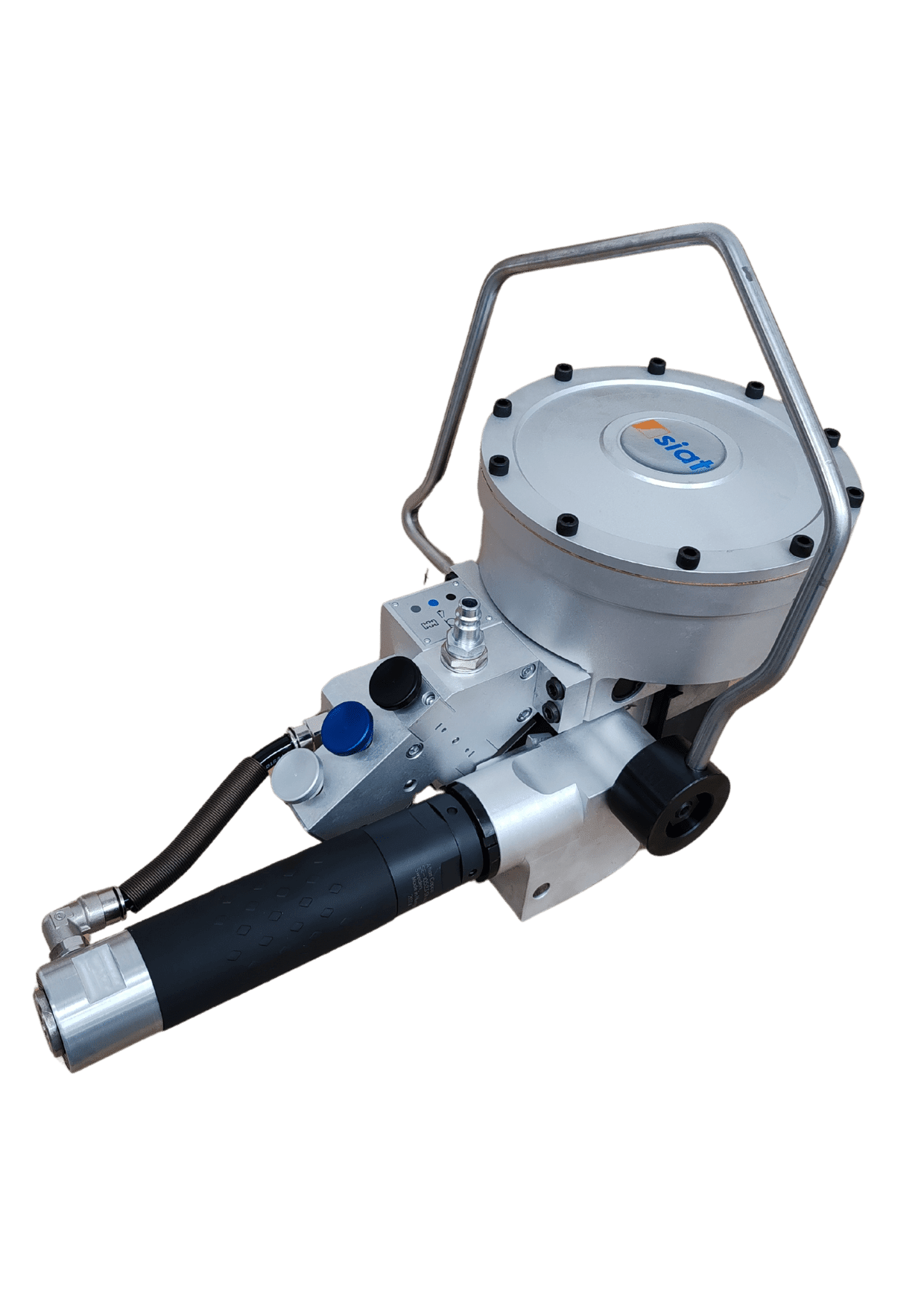

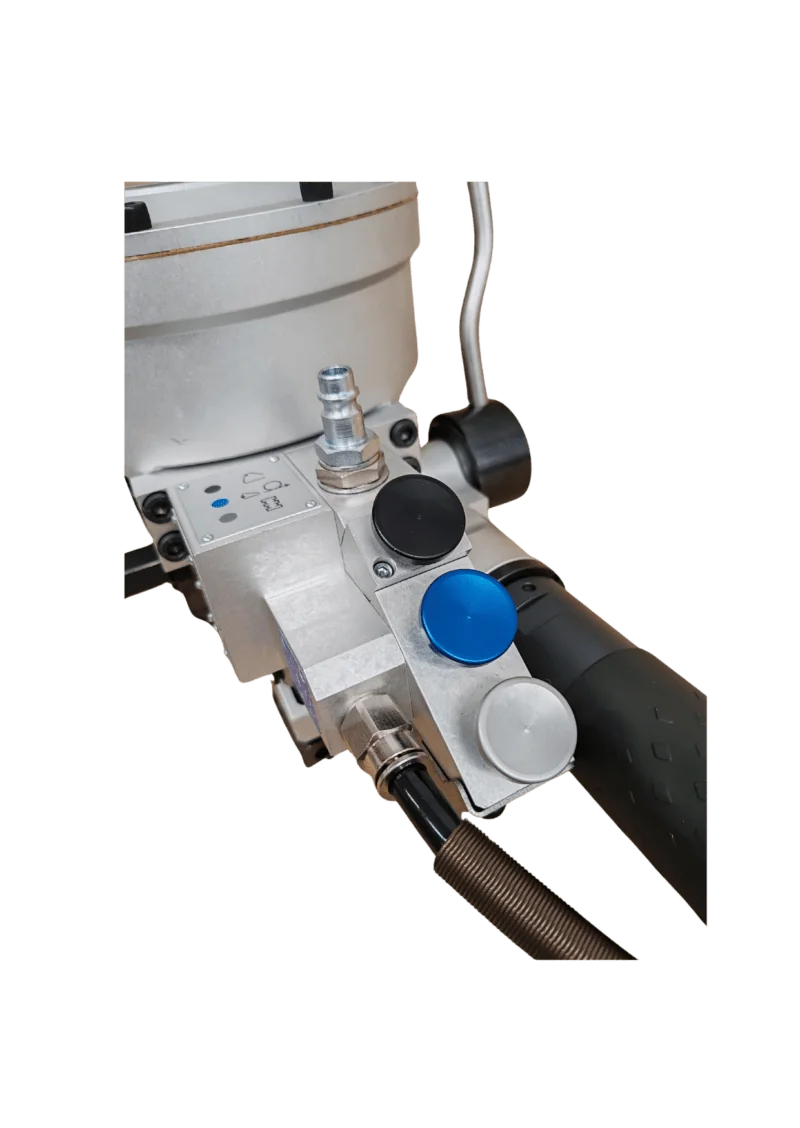

It is a powerful and reliable strapping tool. It is designed to use in industrial heavy duty applications. It is available in two versions: 3 buttons model (standard) and 2 buttons model (on request). The tool is available as standard in 3 strap sizes: 19 mm, 25 mm and 32 mm.

Advantages

• Easy to use.
• Modern design.
• Reliable.

Key Features

• Package type: flat / round surfaces.
• Strap quality: steel (Rmax. 1100 N/mm²).
• Strap width: from 19 mm up to 32 mm.
• Strap thickness: from 0.6 mm up to 1 mm (Rmax. 800N/mm²).
• Strap thickness: from 0.63 mm up to 0.8 mm (Rmax. 950 N/mm²).
• Max. Tension: 9000N.
• Max. Tension speed: around 6 m/ min.
• Joint type: overlap seal – double notches (min. length 45 mm).
• Air pressure: 6 – 7 bar max.
• Air consumption: 12 l/s.
• Weight: about 10 Kg.

Options

• Pins jointed special suspension bracket kit.

Ideal for these industries

• Glass & Metal Industry.
