Description

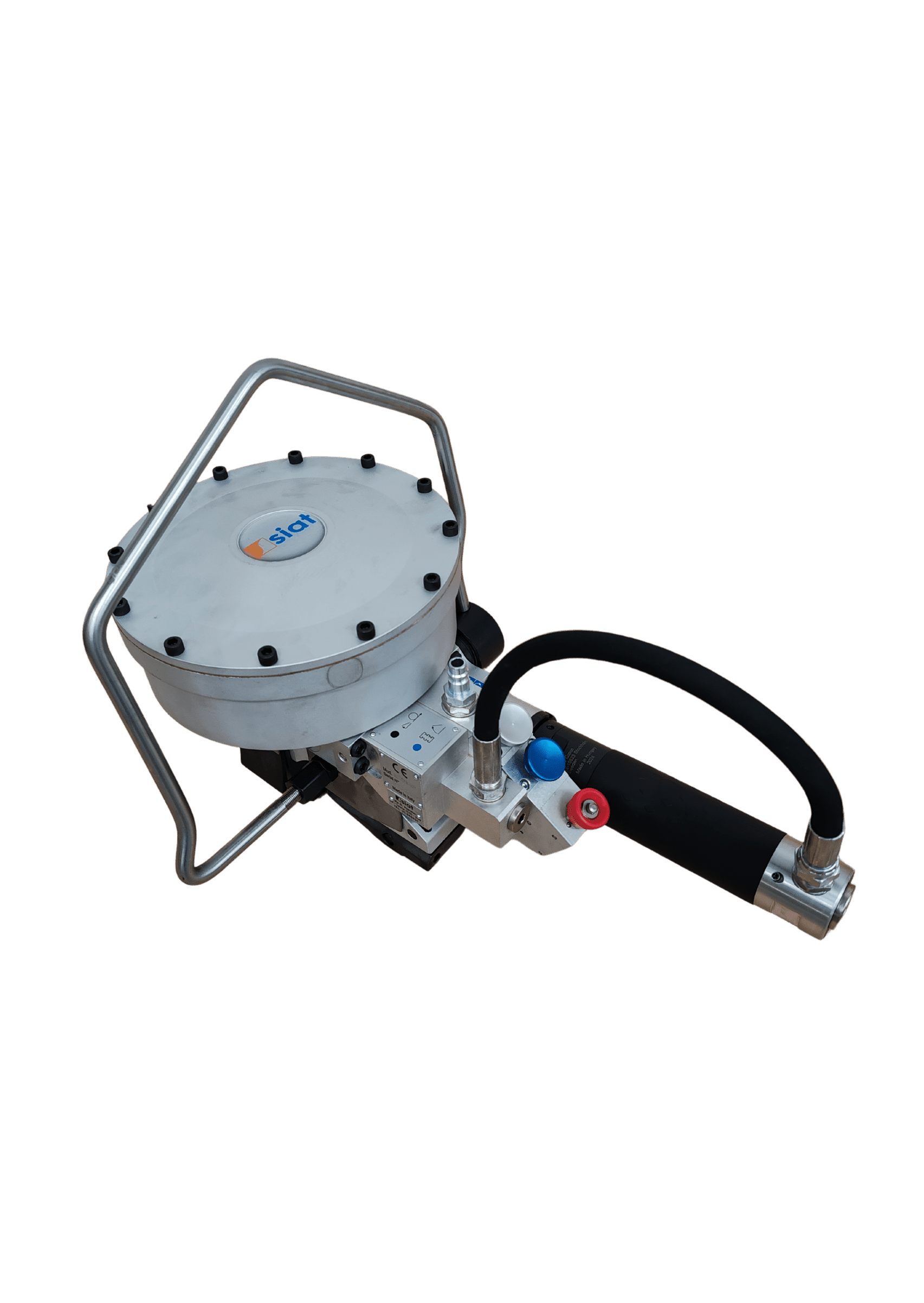

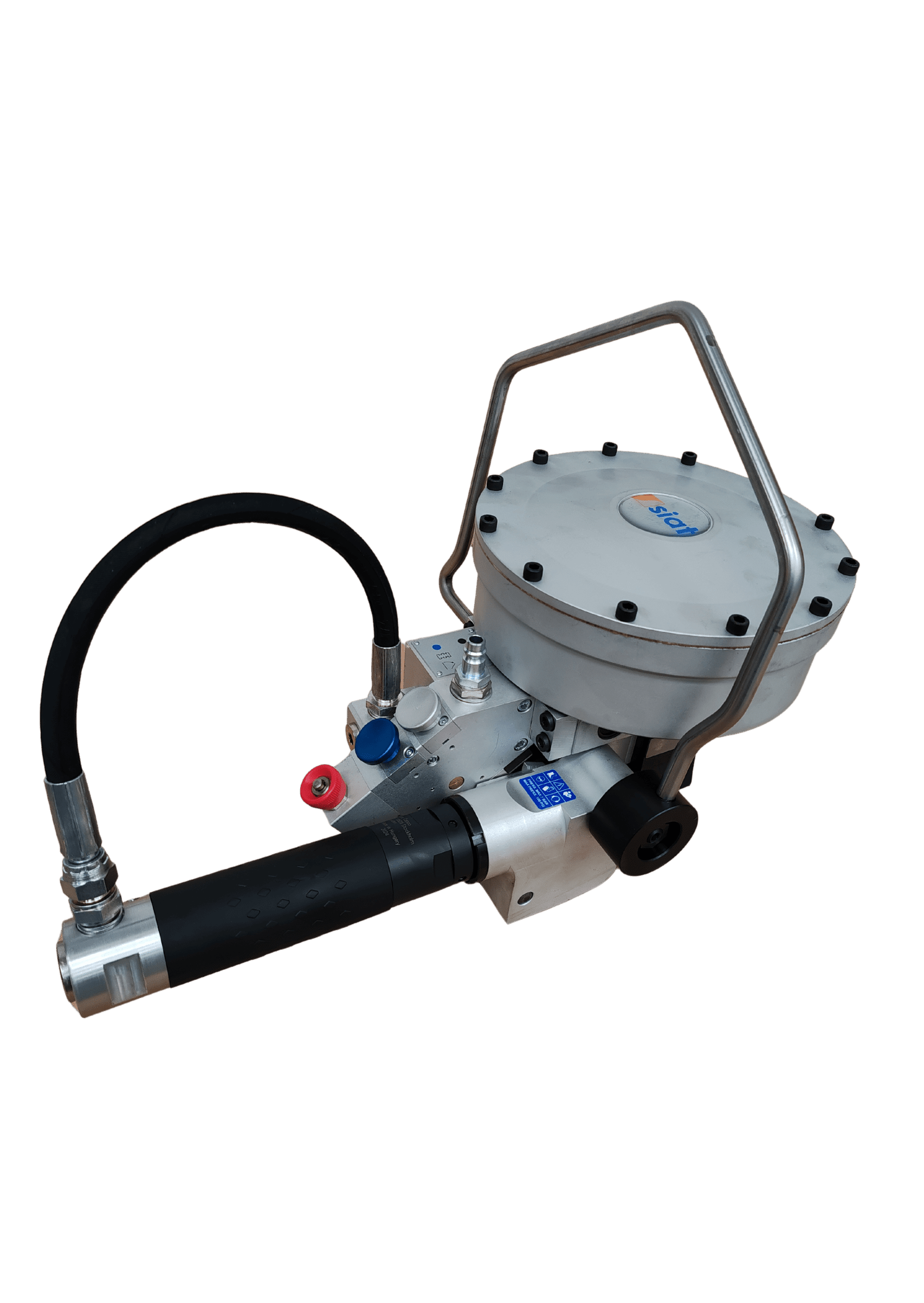

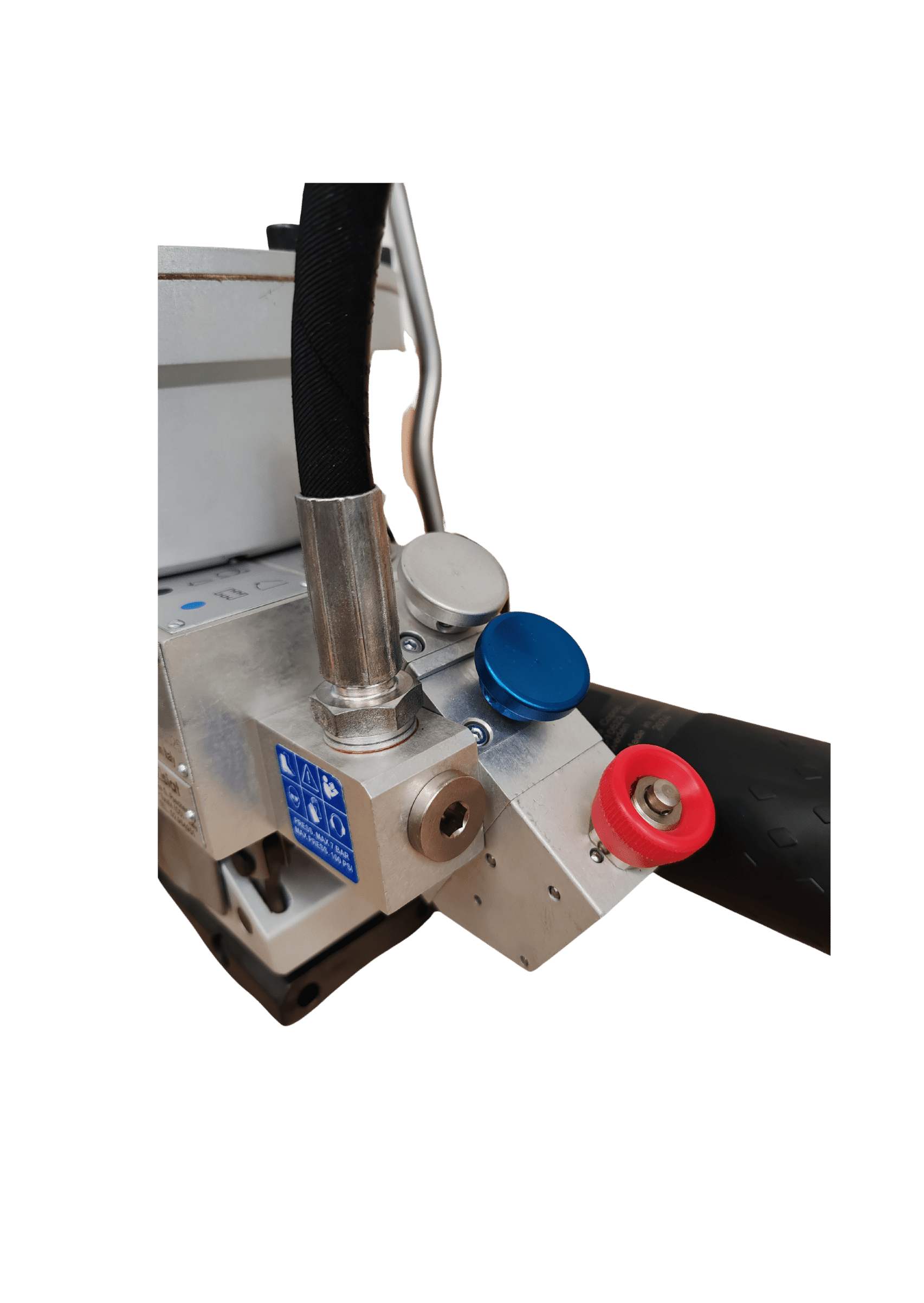

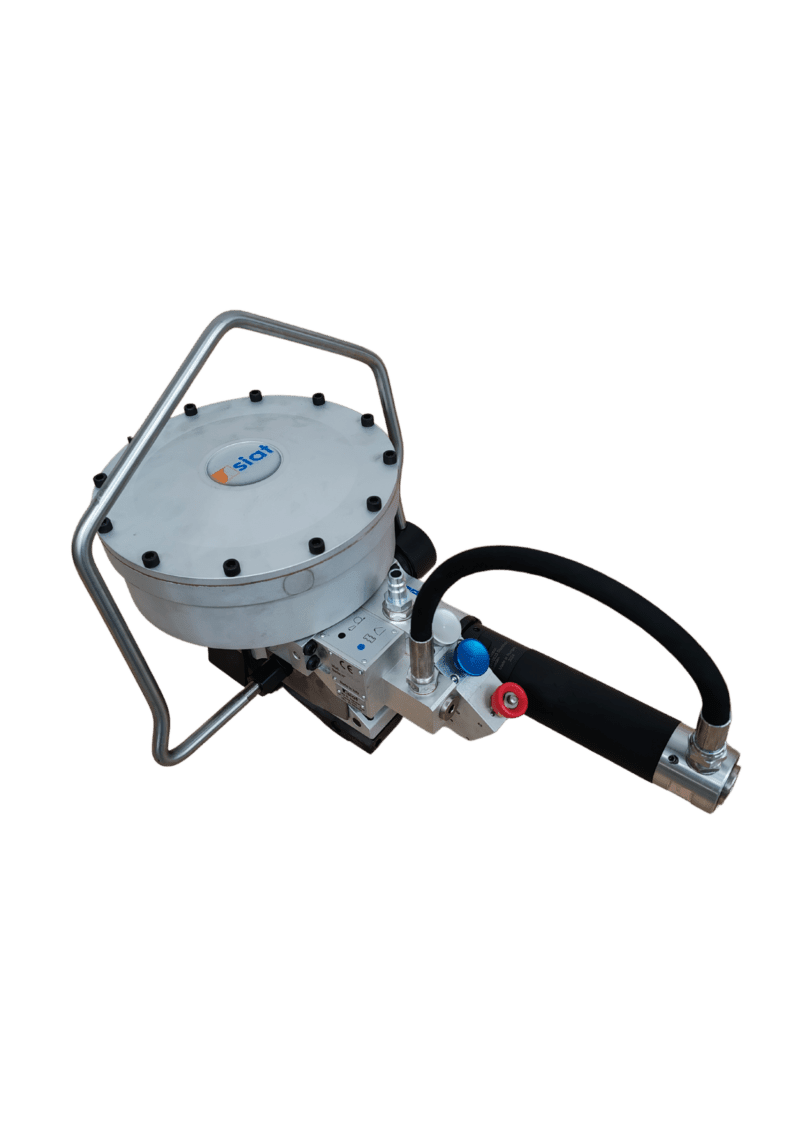

It is a powerful and reliable strapping tool. It is designed to use in heavy duty industrial applications, particularly in low pressure air plants. Thanks to the new design (smaller, reinforced and lighter body compared with the previous HT model), the tool can work perfectly even with low air pressure (from 4.5 bars) and can offer a constant and superior seal notch integrity. The body is smaller and lighter than the previous STSR 32 HT allowing for easier handling. The lower air pressure function (from 4.5 bar) is also available for 25 mm steel strap.

Advantages

• Easy to adjust and operate.
• Modern design.
• Reliable.
• Equipped with BOSCH motor.
• Easy access to clean & perform maintenance.

Key Features

• Package type: flat/round surface.
• Strap width: 25 mm – 32 mm.
• Strap thickness: 0.6 mm – 1 mm (Rmax. 800 N/mm²) max. 0.8 mm at 4.5 bar.
• Strap thickness: 0.6 mm – 1 mm (Rmax. 950 N/mm²) max 0.9 mm at 6.3 bar.
• Max. tension: 9000N (with standard motor at 6.3 bar).
• Max. tension speed: 6 m/min. (at 6.3 bar).
• Joint type: overlap seal – double notch (Min. length 45 mm).
• Air pressure: 4.5 – 7 bar max.
• Air consumption: 12 l/s.
• Weight: about 10,8 Kg.

Ideal for these industries

• Glass & Metal Industry.
