Description

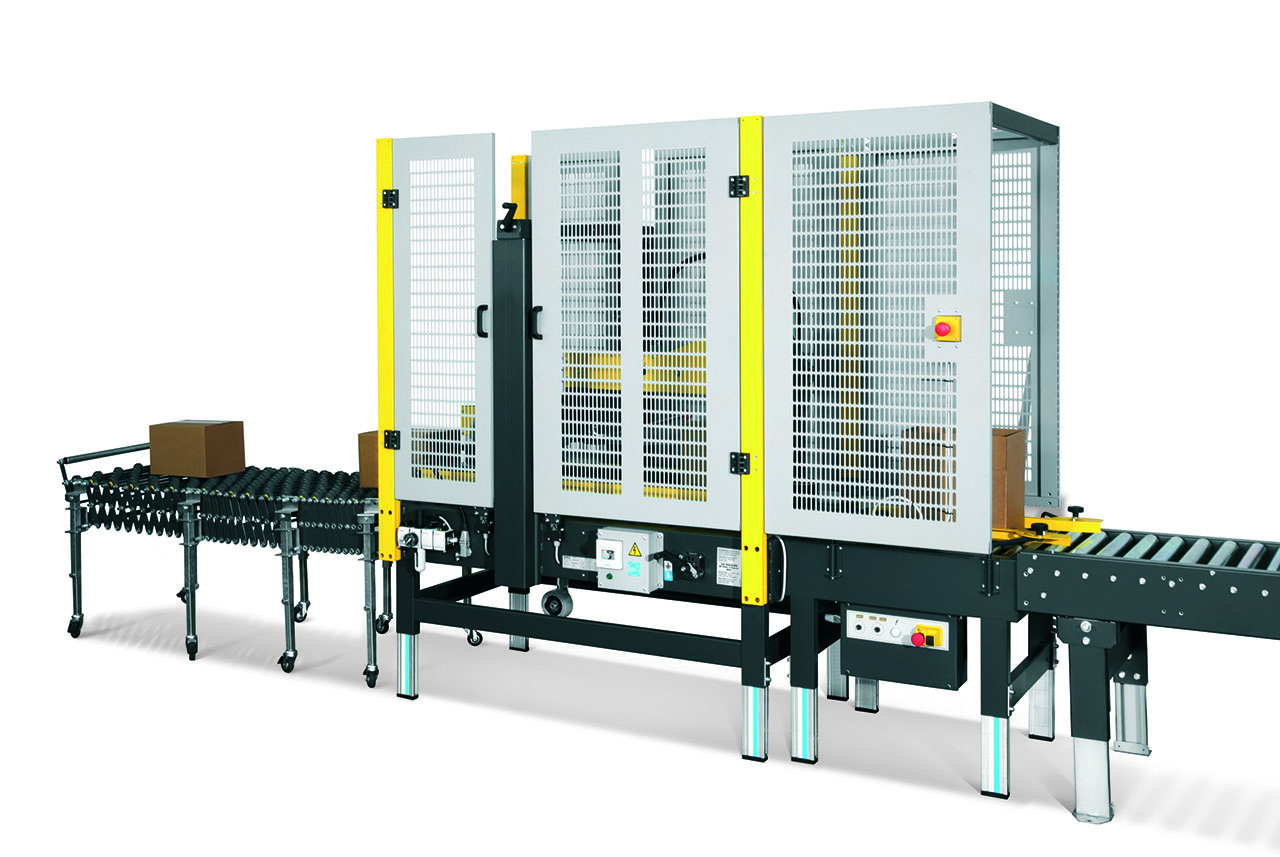

SM11 model is an automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually and for this reason it is used for long runs with same box dimensions. The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line. The SM11 adjustment and use are intuitive, simple and fast.

Advantages

• High productivity.
• Fully automatic.

Key Features

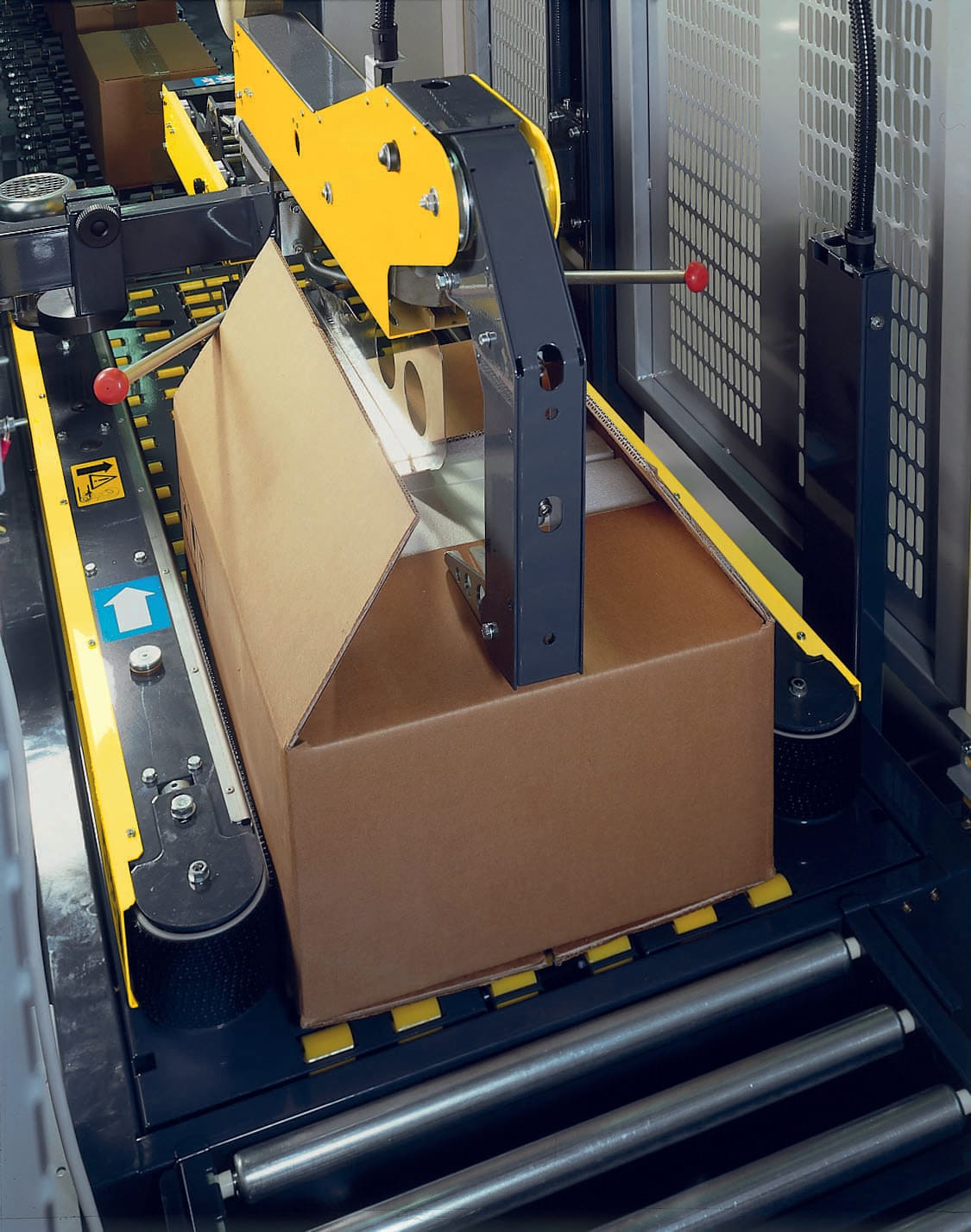

• Automatic four-flaps-folder device.
• Manual adjustment on different box sizes (width, height, length) by handles. Time required 1′.
• Side drive belts (2 x 75 mm width each).
• Drive belts speed 21 m/min.
• 2 motors kW 0,13 each.
• Side pressure rollers to keep top flaps one close to the other.
• Adjustable working height 500 – 750 mm.
• 2 x K11R taping unit – 50 mm width.
• 2 x K12R taping unit – 75 mm width only for SM116 model.
• Side safety protections connected to electro-pneumatic disconnection switches.

SM11
Box dimensions:
Min. L 200 mm W 150 mm H 100 mm
Max. L 600 mm W 500 mm H 600 mm

SM11-I
Machines in stainless steel.

SA11
Machines with switch to control the movement of the top taping head frame by pneumatic pistons instead of handles & screws.

SM11/4
Box dimensions:
Min. L 200 mm W 105 mm H 90 mm
Max. L 600 mm W 500 mm H 600 mm

SM116
Box dimensions:
Min. L 300 mm W 150 mm H 180 mm
Max. L 900 mm W 650 mm H 700 mm

Options

• 2 x K12R taping unit - 75 mm width (SM11 model).
• Low tape / no tape sensor device.

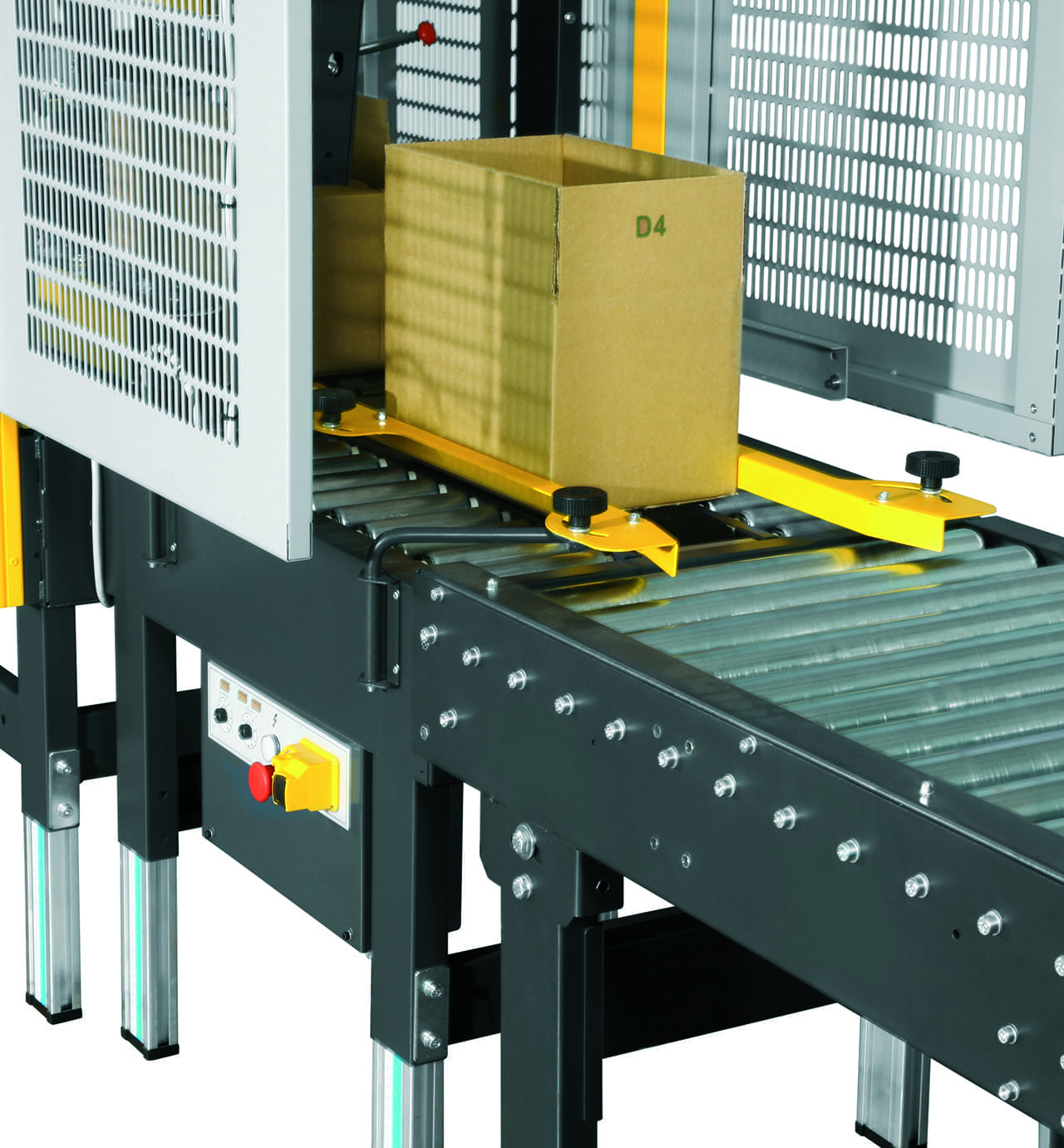

• AG21 motorized indexing unit with timer control.
• KS11 silent taping unit.
• Stainless steel version (SM11-I).
• Higher legs (AS80).
•
Casters (AS77).
• Roller conveyor (RG).
•
Extendable conveyor (GTL-GTR).

Ideal for these industries

• Wine & Spirits.
• Household, Consumer & Personal Care.
• Food & Dairy.
• Pharmaceutical Industry.
• E-Commerce.
