Description

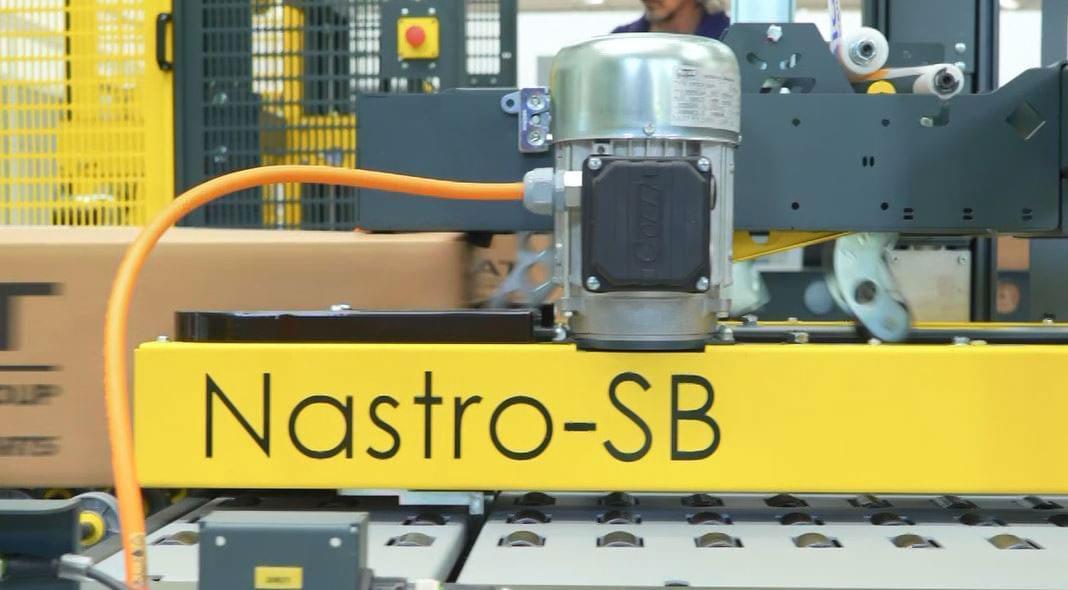

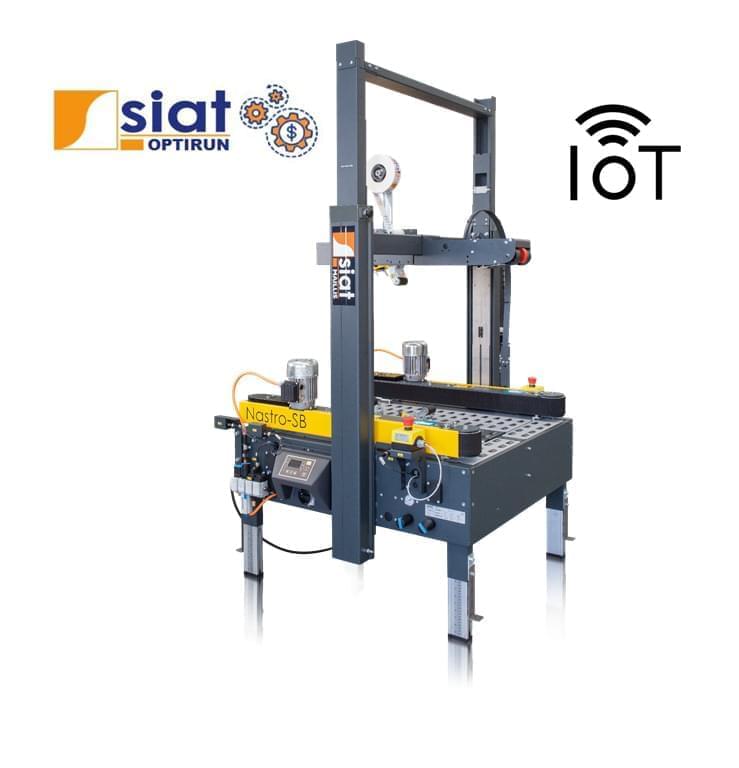

Nastro-SB™ R is a range of heavy duty semi-automatic case sealing machines designed and engineered by SIAT specifically for small, medium, large and king random boxes.

Nastro-SB™ R is the ideal case sealing machine for a variety of industries like food&beverage, chemical, clothes and e-commerce.

Advantages

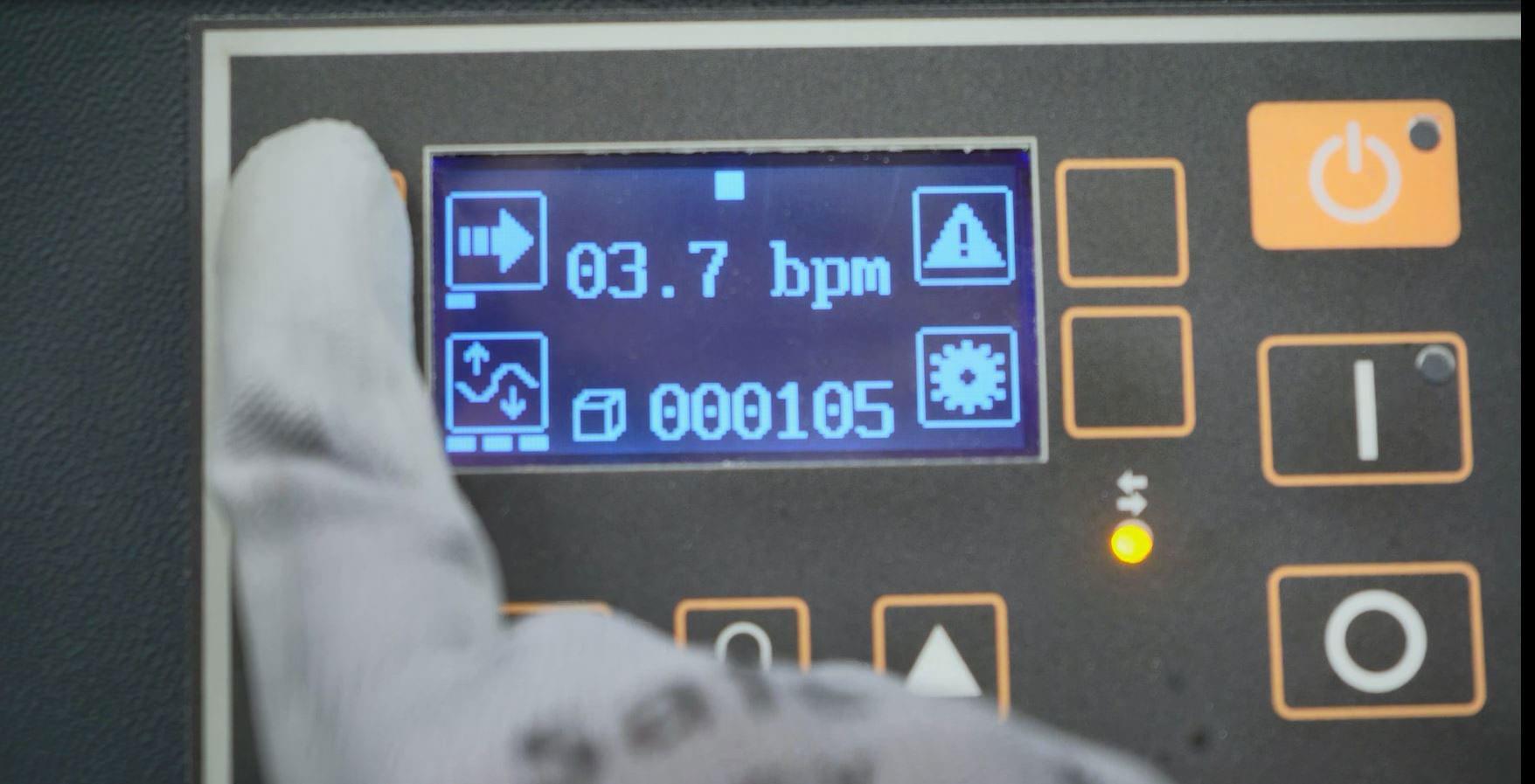

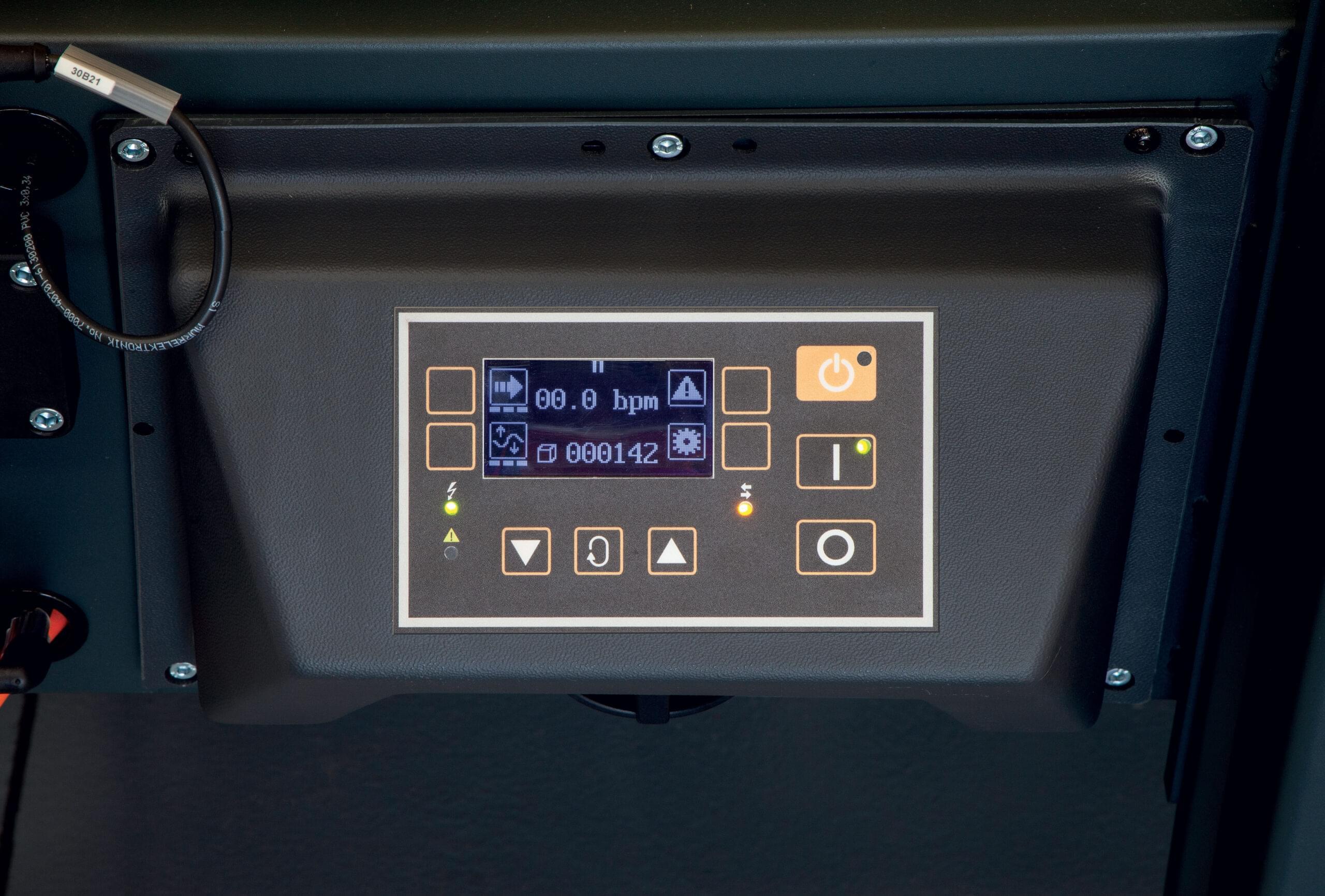

• Intelligent machine with logic on board.
• Faster than standard case sealers thanks to patented variable speed functions.
• Thank to IoT System the user can have more information about the machine: number of cycles, timing in operation, timing in stand-by, boxes per minute, tape consumption, timing of usage, faults, etc.
• Energy saving device.

Key Features

• Logic on board with patented variable speed to increase machine capacity.
• Possibility to implement IoT module with SIAT Optirun platform.
• Energy saving device included as standard.
• Seals upper & lower flaps of cardboard cases or cartons.

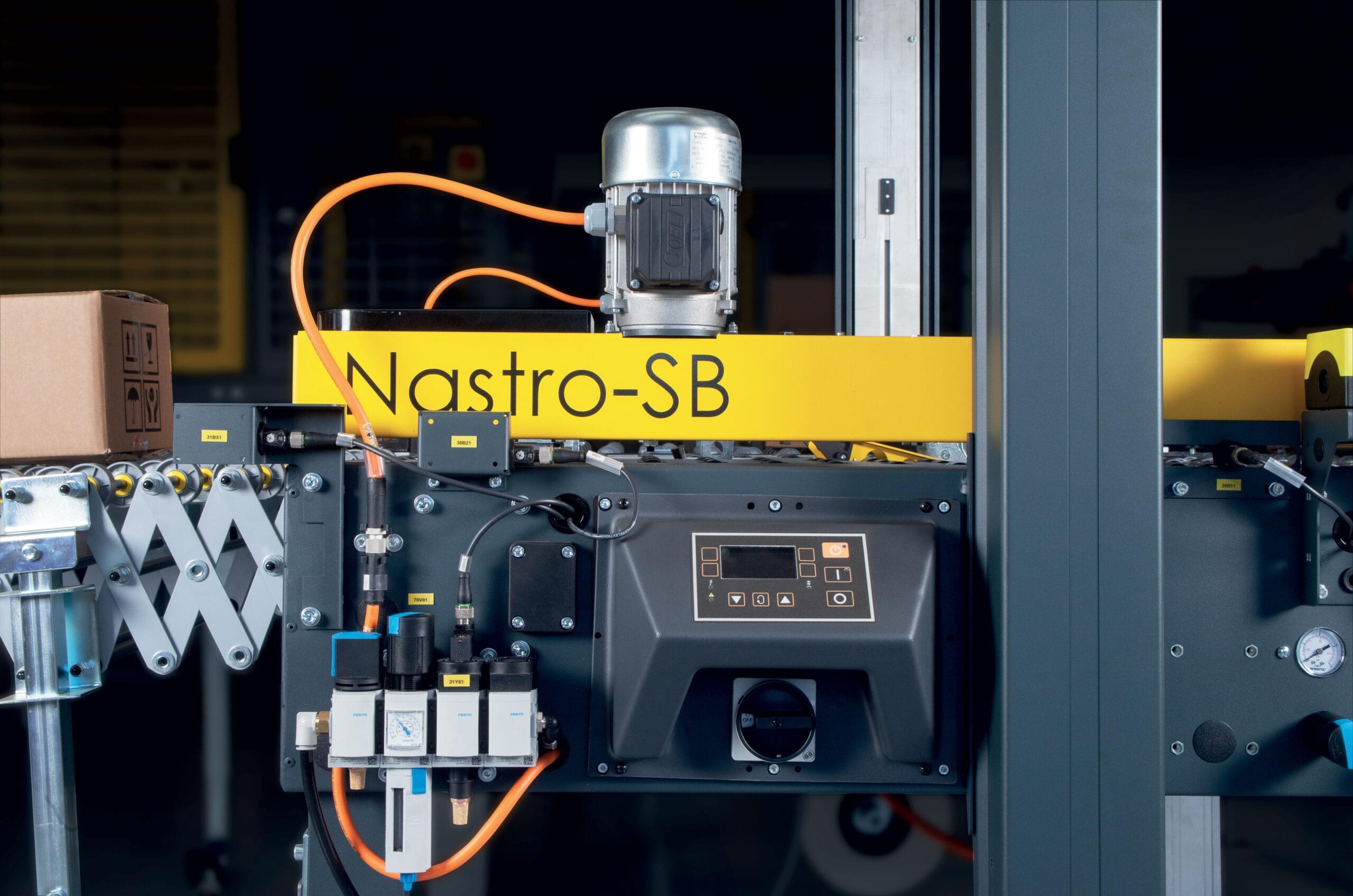

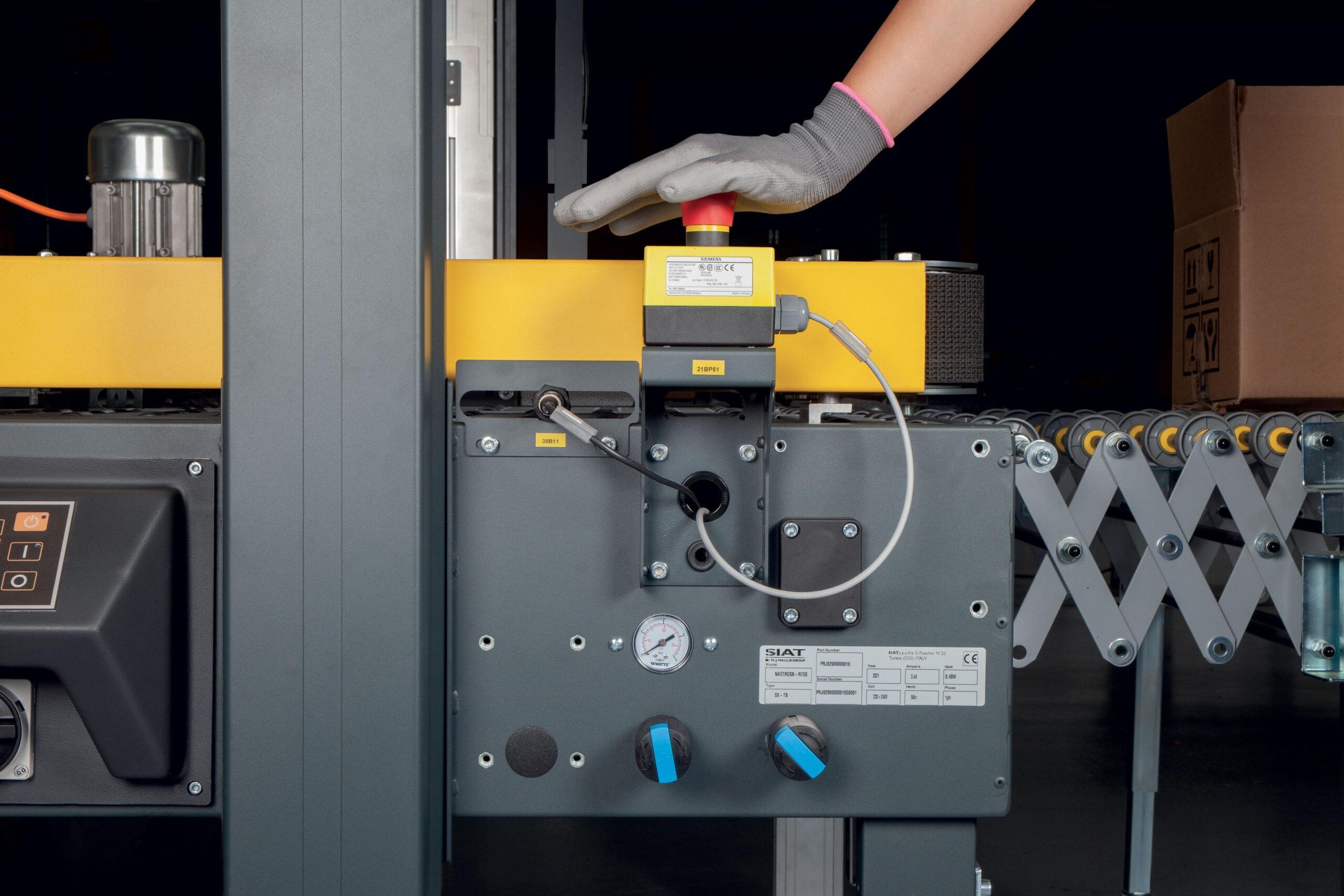

• Lockable electric and air switch to ensure safety during maintenance» Central (R5) or double side (R6) emergency pushbutton.
• Best-In-Class electric and pneumatic components.

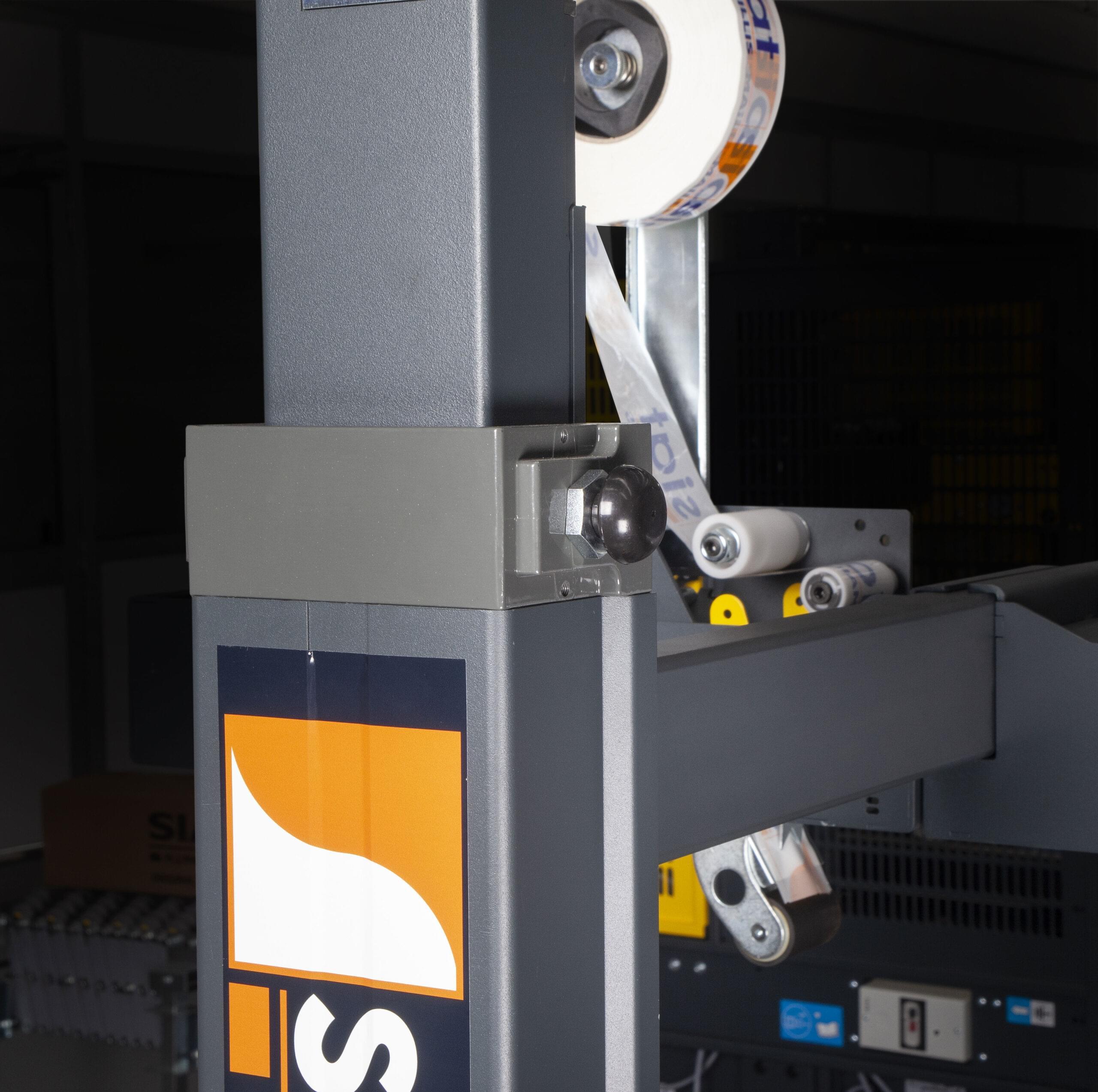

• Re-designed columns & upper frame to maximize stren­gth and resist to vibration.

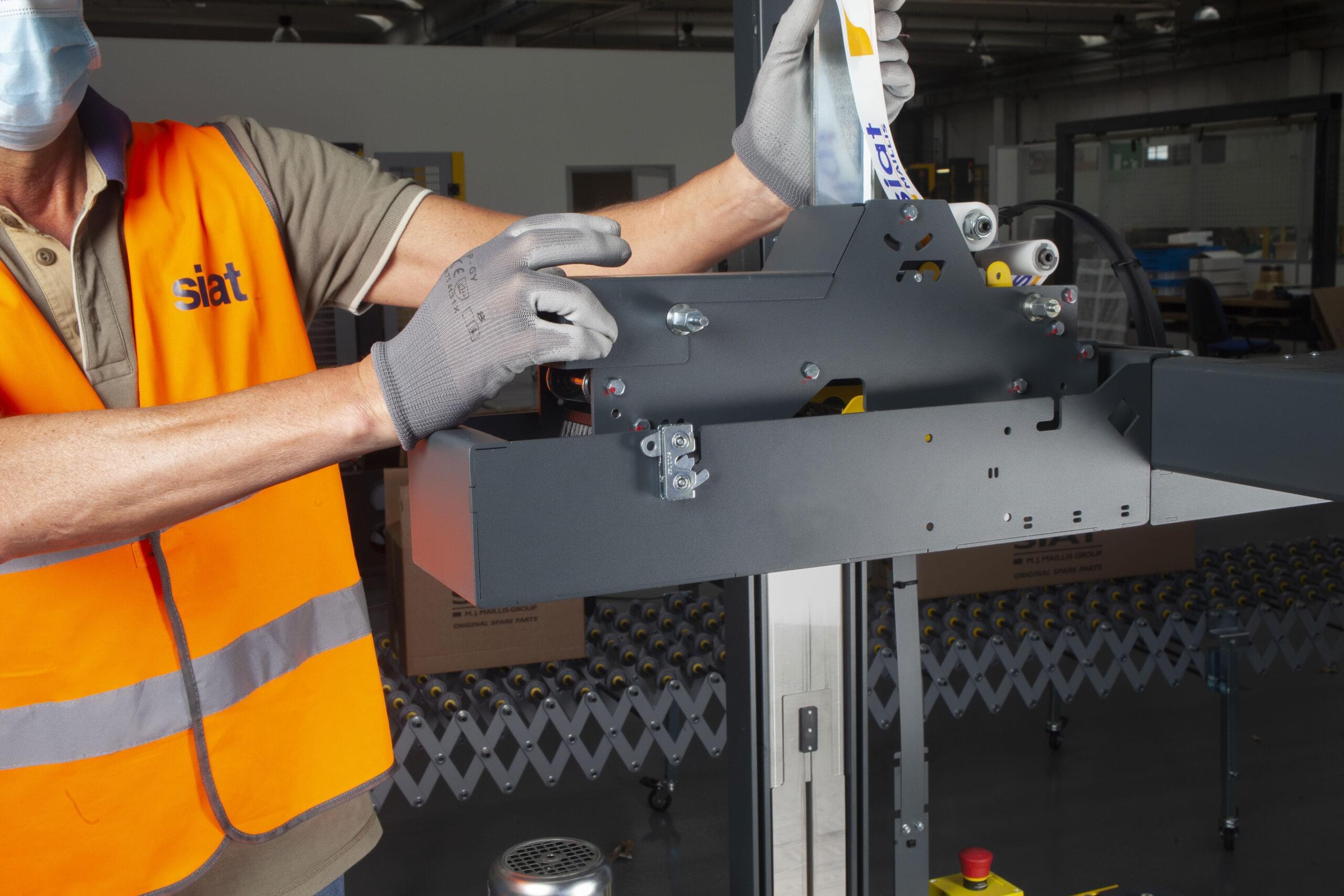

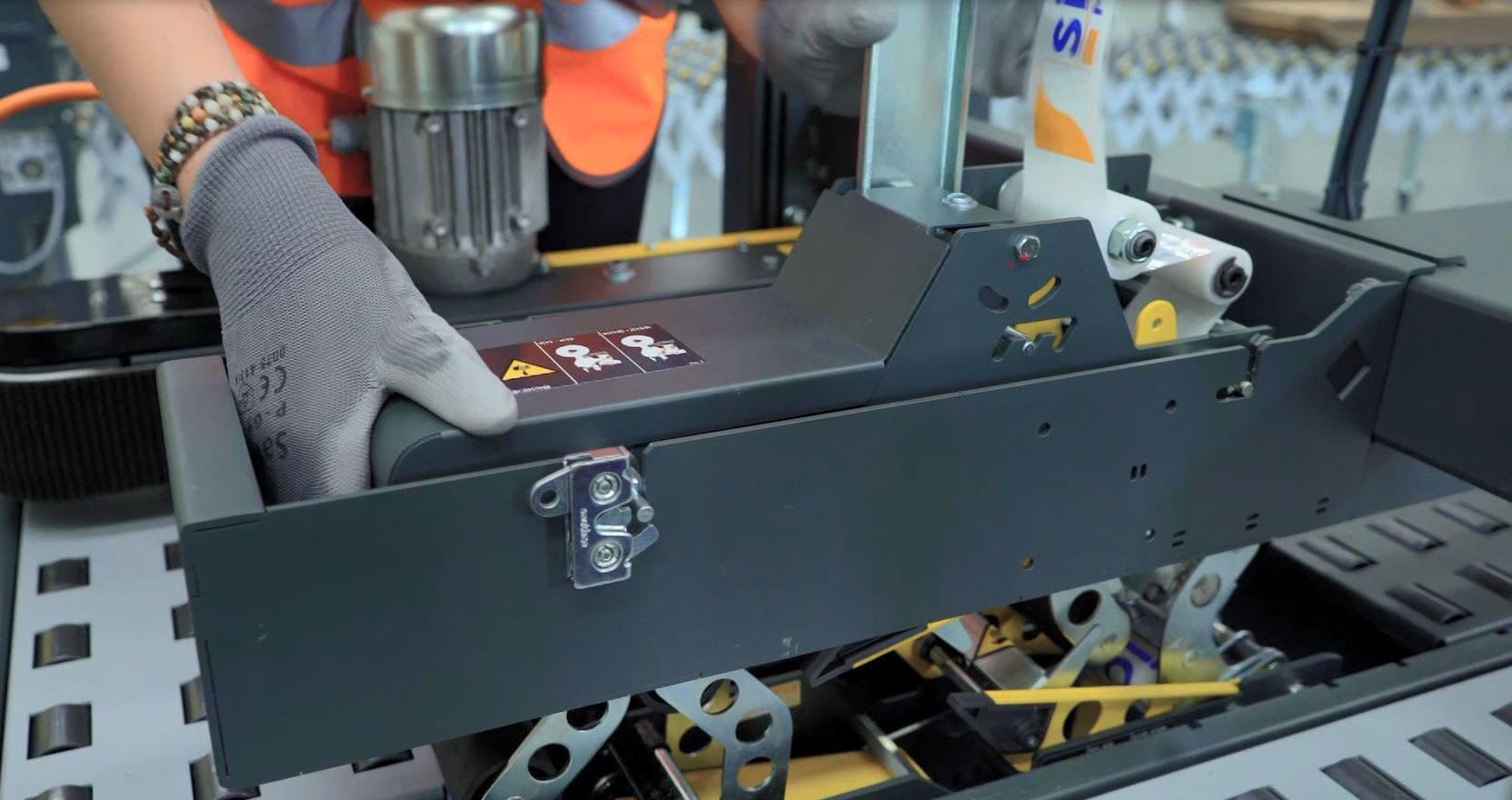

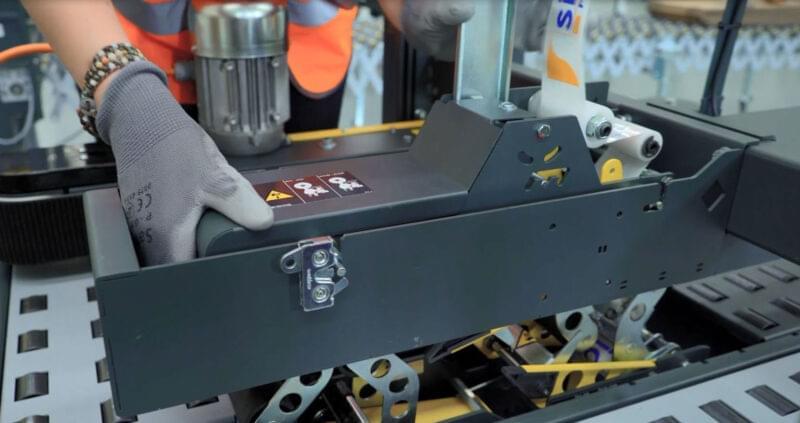

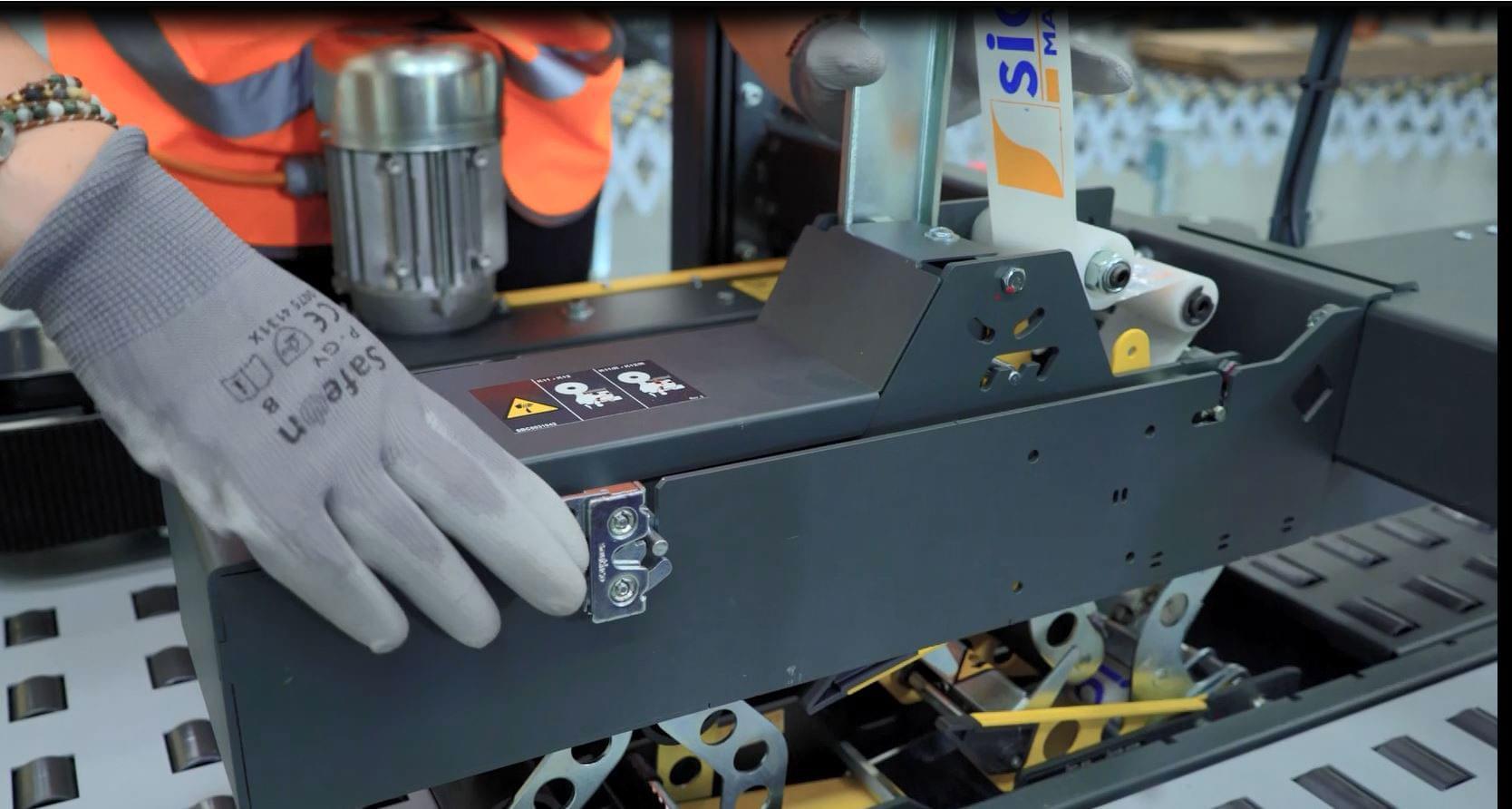

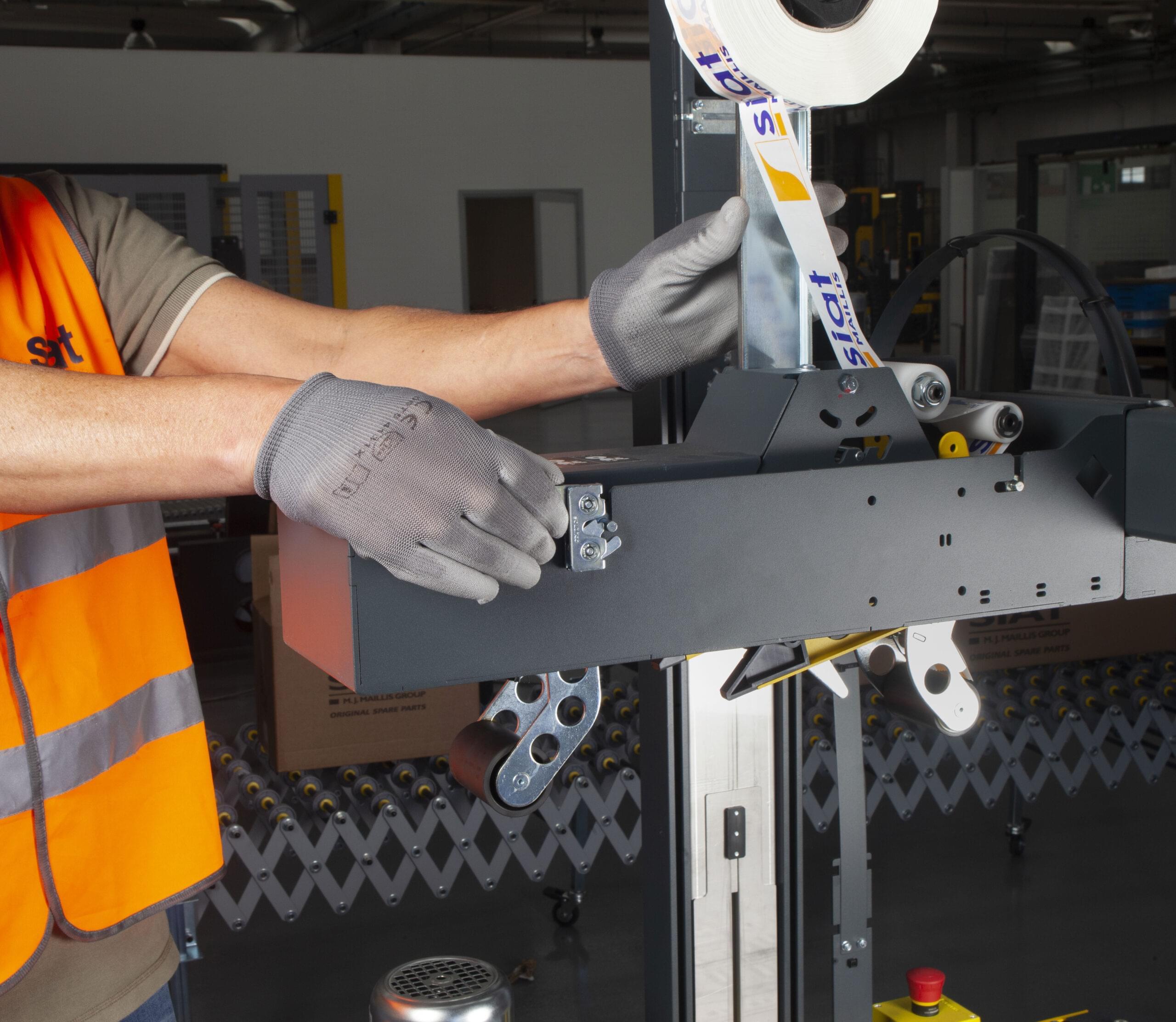

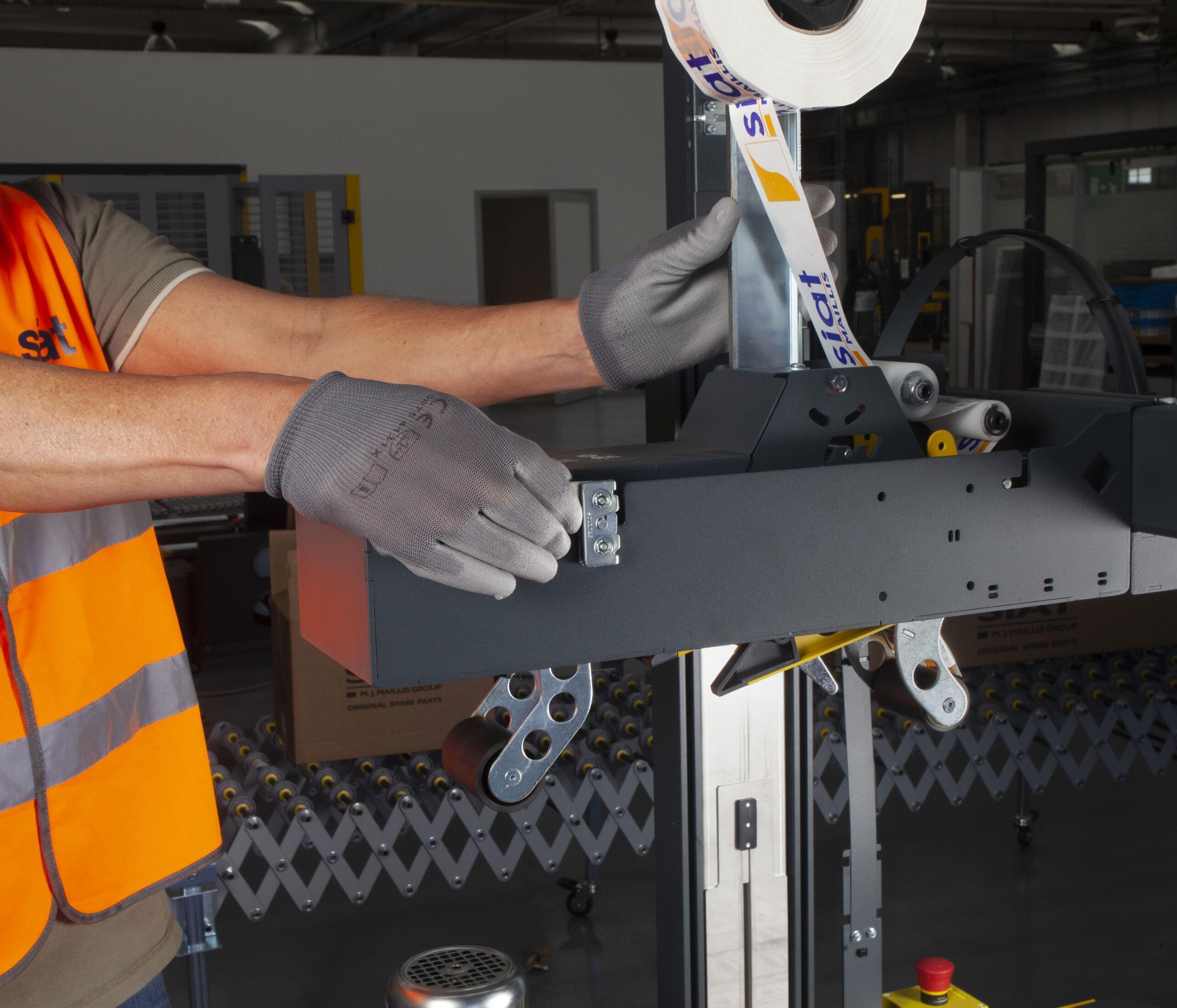

• New Quick release Taping Heads device (Top & Bottom – No tools required).

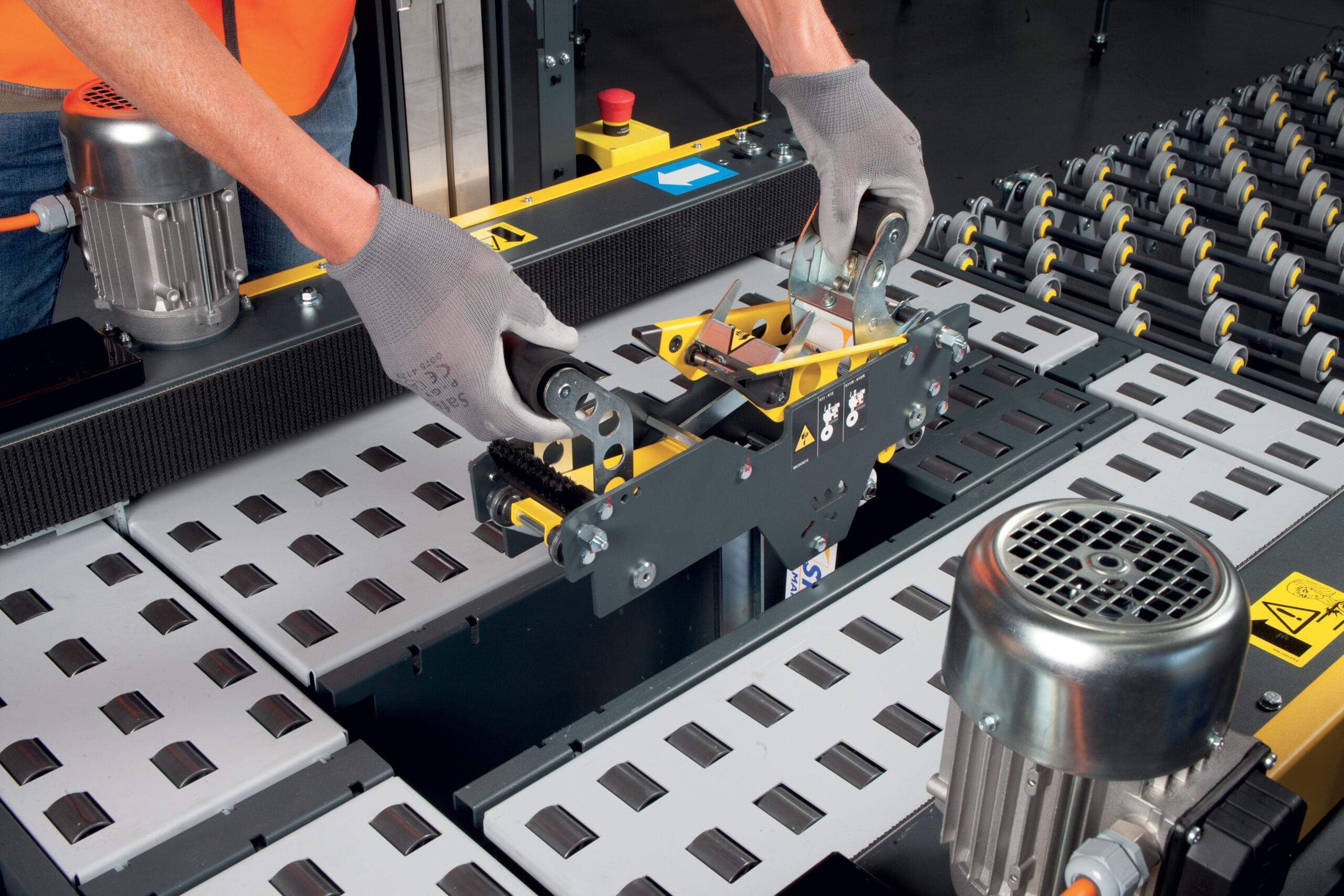

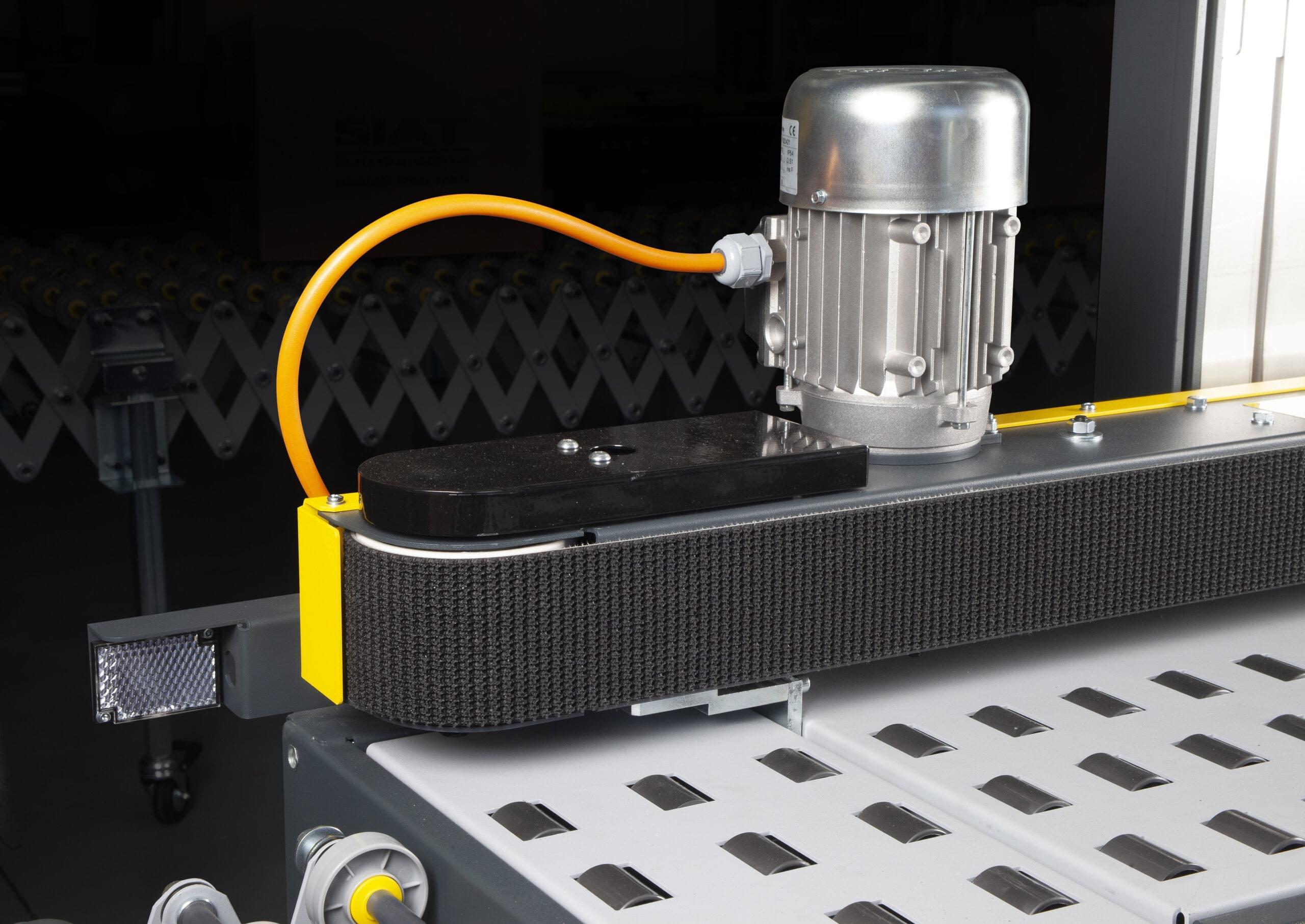

• Easy and quick belt conveyor maintenance and change.
• 75 mm high belt conveyor for all the range including low boxes machine.
• End/broken tape alarm device option.

Nastro-SB™ R5B-S / R5T-S
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 150 – 500 H 120 – 500

Nastro-SB™ R5B-L / R5T-L
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 105 – 500 H 50 – 50

Nastro-SB™ R6B-S / R6T-S
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 150 – 650 H 120 – 650

Nastro-SB™ R6B-L / R6T-L
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 105 – 650 H 50 – 650

Nastro-SB™ R8B-S / R8T-S
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 150 – 800 H 90* – 800

Nastro-SB™ R8B-L / R8T-L
Semi-automatic case sealer – manual adjustment on the different box sizes.
Box dimensions: L (mm) 150 – ∞ W 105 – 800 H 50* 800

* with 30 mm tape leg

Options

• Higher legs: Nastro leg low height (440-700 mm) – Nastro leg max height (760-1020 mm).
•
Casters (AS77).
• Roller conveyor (RG).
•
Extendable conveyor (GTL-GTR).

Ideal for these industries

• Wine & Spirits.
• Construction.
• E-Commerce.
