Description

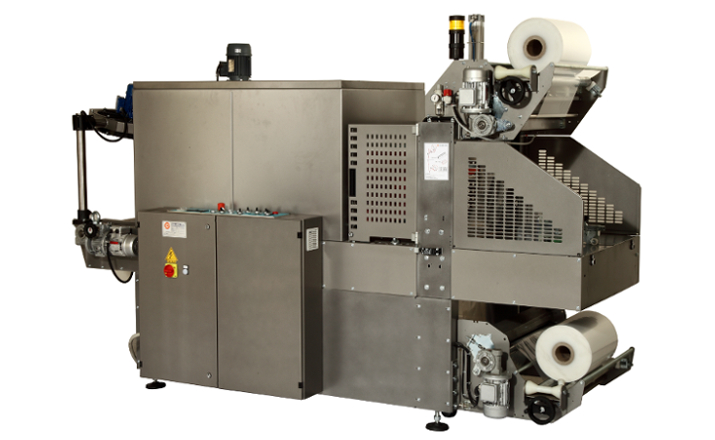

Semi-automatic machines with adjustable pusher for manual loading of the product on the feeding surface. These machines are suitable for packaging any product. Production capacity 5-12 packages/minute.

Advantages

• Machine with monoblock structure.
• Can shrink individual or grouped packages.
• Product forwarder.

Key Features

• The maximum width of the package depends on its height.
• Spiritual pusher in line with the scraper.
• 700 mm (MS 70)-900 mm (MS 90) "hot bar" - type of sealing bar with foil cut by a cold blade.
• Safety photocell that blocks the sealing bar if it finds an obstacle in its path.
• Passage opening under the sealing rod 380 mm.
• Automatic upper and lower film reel unwinding system with traction rollers.
• Thermal shrinkage tunnel Length 1300 mm for mont. (MS 70) - 1500 mm for mod. (MS 90) with air circulation system.
• Adjustable speed of the conveyor belt in the tunnel.
• Installed power 20 kW for the mod. (MS 70) - 27 kW for the mod. (MS 90). The average electricity consumption is reduced by about 40% during normal operation.
• Air consumption 150 nl/min.
• Pneumatic components operating with non-lubricated dry air.
• Switch for manual or semi-automatic operation.
• Voltage: 400 V 3-phase + N + E / 50 Hz.
• Machinery compliant with the Machinery Directive 2006/42/EC.

Options

• Guides for holding the product after the sealing rod.
• Packaging refrigeration unit placed at the exit of the tunnel.
• Mechanical self sizing press in the package.
• Film pressure cylinders.
• Side rails inside the tunnel to protect the product.
• Machine mounted on wheels.
• Part of the conveyor with thick rollers and placed under the packing cooling unit at the tunnel exit. This solution is ideal for groups of products that are packed only with film.
• Upper and lower film roll infeed rollers to facilitate operator replacement.
• Marking system indicating the end of the reel.
• Automatic centering system of the upper and lower film roll via handwheel.
