Description

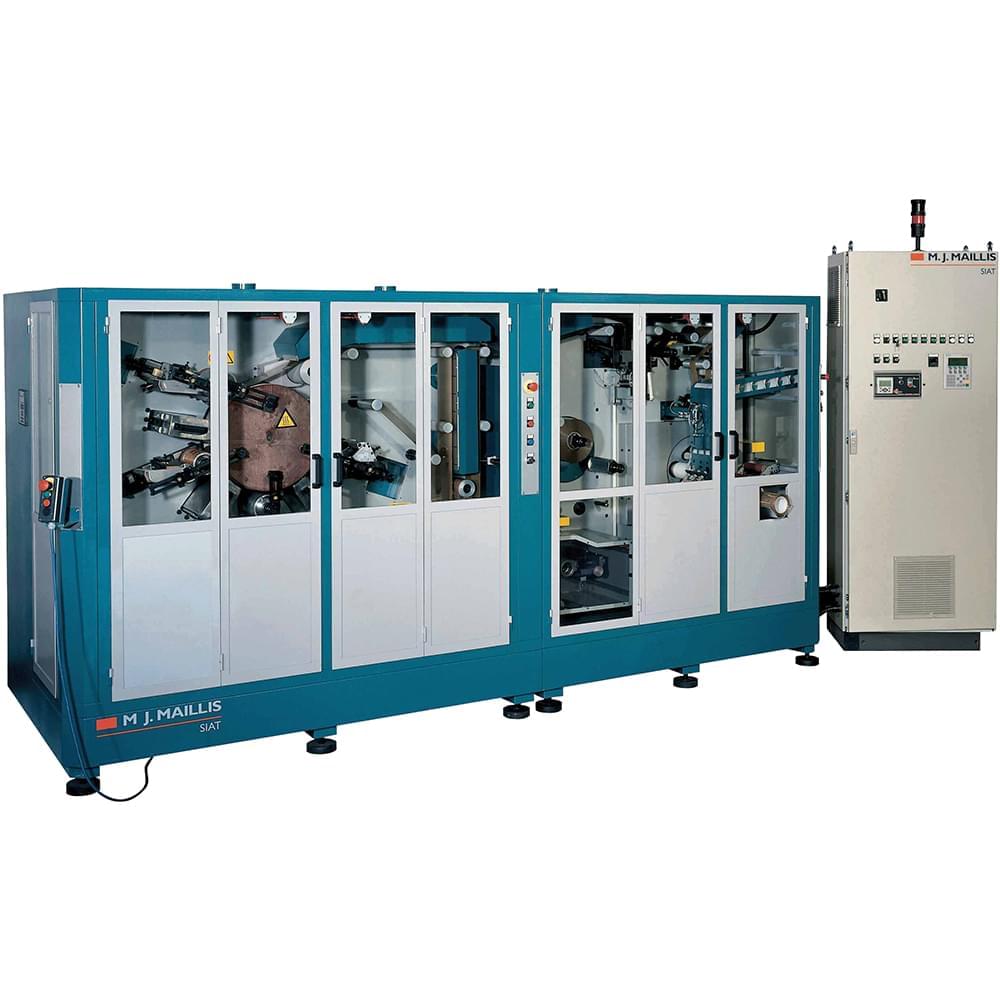

The L444-150 TC-CE model is an automatic flexographic printing press for the 4-colour printing of adhesive tape, straps end of each sleeve applying and automatic packing of printed tape onto sleeves. L444-150 TC-CE: fully automatic flexography printing press 4 colours – 150 mm width.
Capable to print: PVC, OPP (Pre-Treated, Solvent, Hot-Melt, Acrylic Water & Solvent Basis), adhesive paper.
Advantages
- Easy & friendly digital control panel.
- Electronic meter counter.
- Electronic web tape guide.
- Tape cut at the selected length (no more than 132 m): 48 mm - 50 mm - 72 mm - 75 mm.
Key Features
- 4 colors.
- 4 drums on which the tape pass through to be printed.
- Multiple setting device by razor blades.
- Automatic change of the log roll with tape cut & attach.
- Corona treatment (optional) with ventilation/suction system.
- Electronic web guide tape alignment.
- Heated ceramized cylinder (temperature adjustable).
- 4 printing stations equipped with metal screened rollers & printing cylinders.
- Drying hot air tunnel between each printing station with pushing & suction air system.
- Double horizontal ventilation/suction tunnel for colors drying.
- Cliché cylinders with lengthwise and axial register adjustment possibility (helicoidal teeth).
- Main drying hot air tunnel with thermoregulator.
- Automatic paper tab attachment.
- Air blower for tape cooling before slitting.
- 3 rewinding mandrels 3″ diameter.
- Automatic cutting at the end of the roller with tab positioning checkout.
- Automatic rewinding mandrel discharge after the cutting and positioning of the new core.
- Safety guards all over the machine with limit switches to stop the machine once opened.
- External Touch Screen control panel with all temperatures, speeds and machine outputs adjustable.
Options
- Automatic core loader.
- Ceramized screened rollers.
