Description
The smart solution for high-resolution package printing.

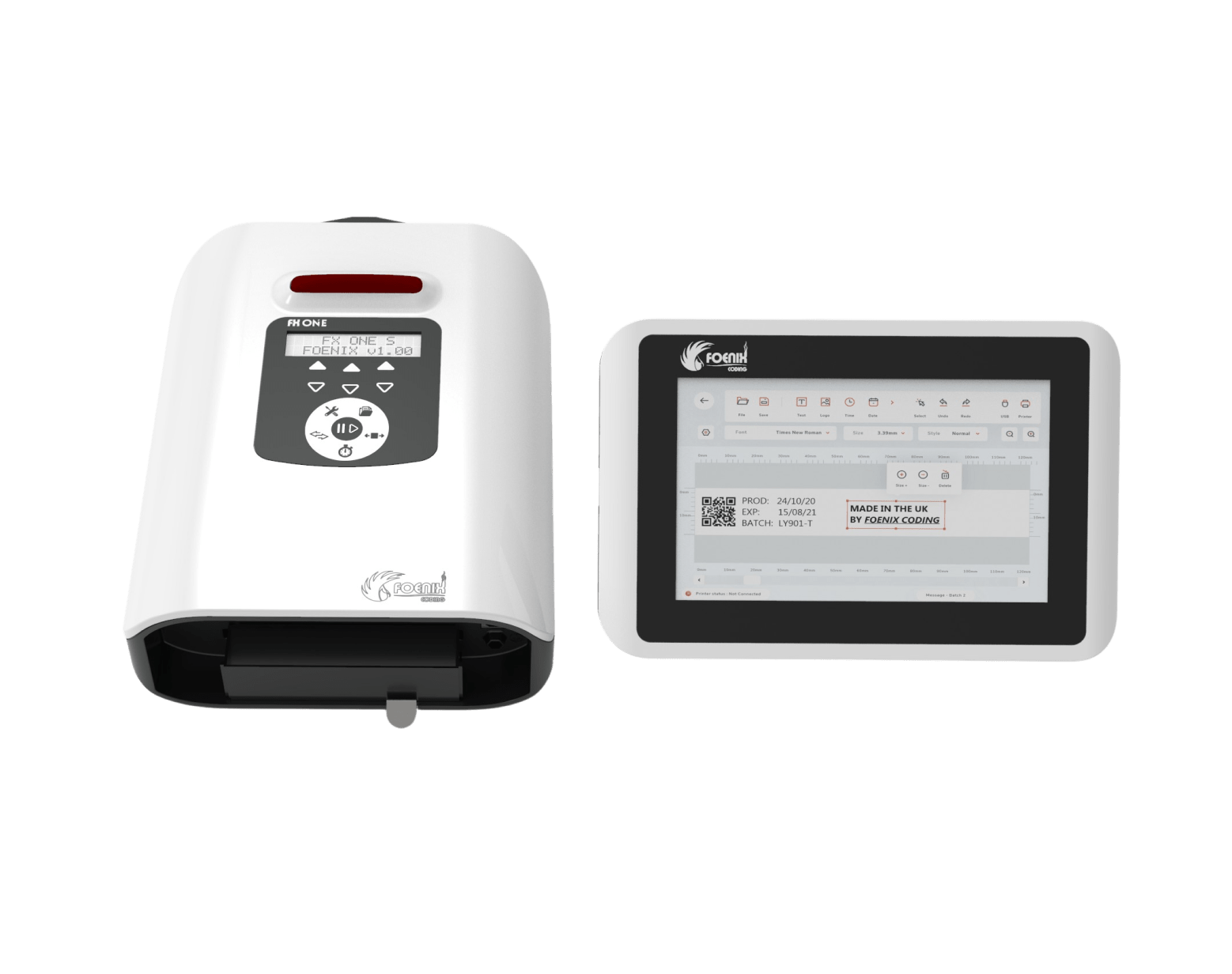

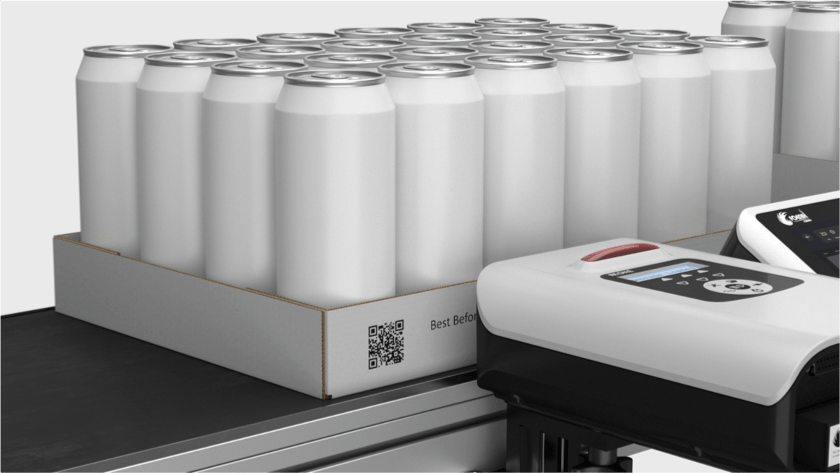

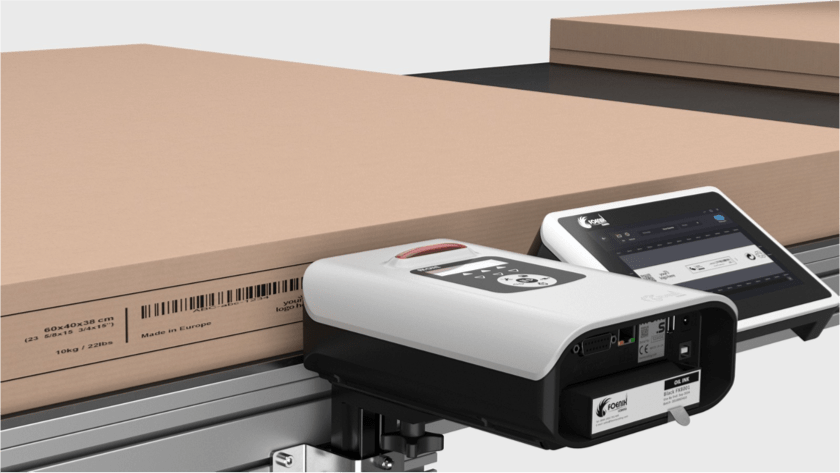

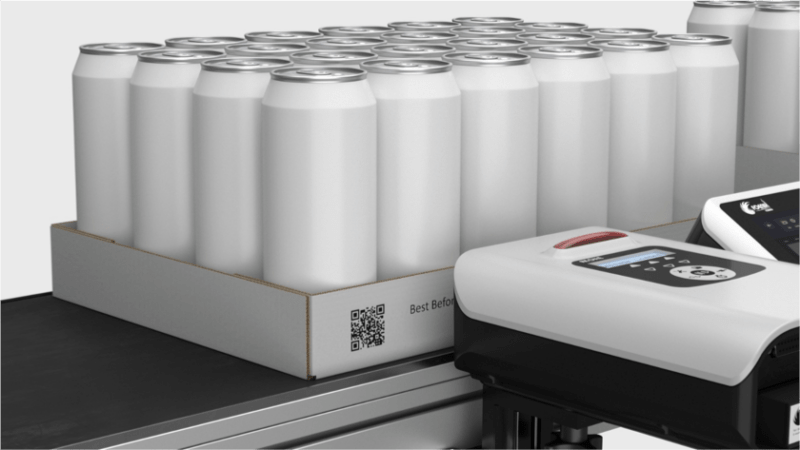

The new FX ONE Standard offers incredible print quality in a full-featured compact printer. It can be used as a simple stand-alone, easy-to-program printer or integrated into a complete production network system. No need for expensive labels: Use the FX ONE Standard for high-resolution printing directly on cartons, trays, bags or other products on a production line to eliminate the need for costly pre-printed packaging or expensive labels.
Save time, Save money.
No complicated start-up and shutdown procedures are required. Simply switch the machine off at the end of the day and switch it on again the next day. The FX ONE printer is designed with minimal components to provide maximum reliability. No pumps, no valves, no compressed air and a single PCB means low maintenance and no costly maintenance contracts.
Reduced printing costs - monitor and manage your cost per print to easily reduce ink consumption by 75%. Printing with small ink droplets and a sealed ink tank offers low cost per print without wasting ink. Easy flow oil-based ink is contained in a 110 ml sealed ink container to ensure it is not wasted, contaminated or found. Replacing the cartridge takes seconds while still printing. The printer can be programmed for automatic cleaning and purging.
Production flexibility.

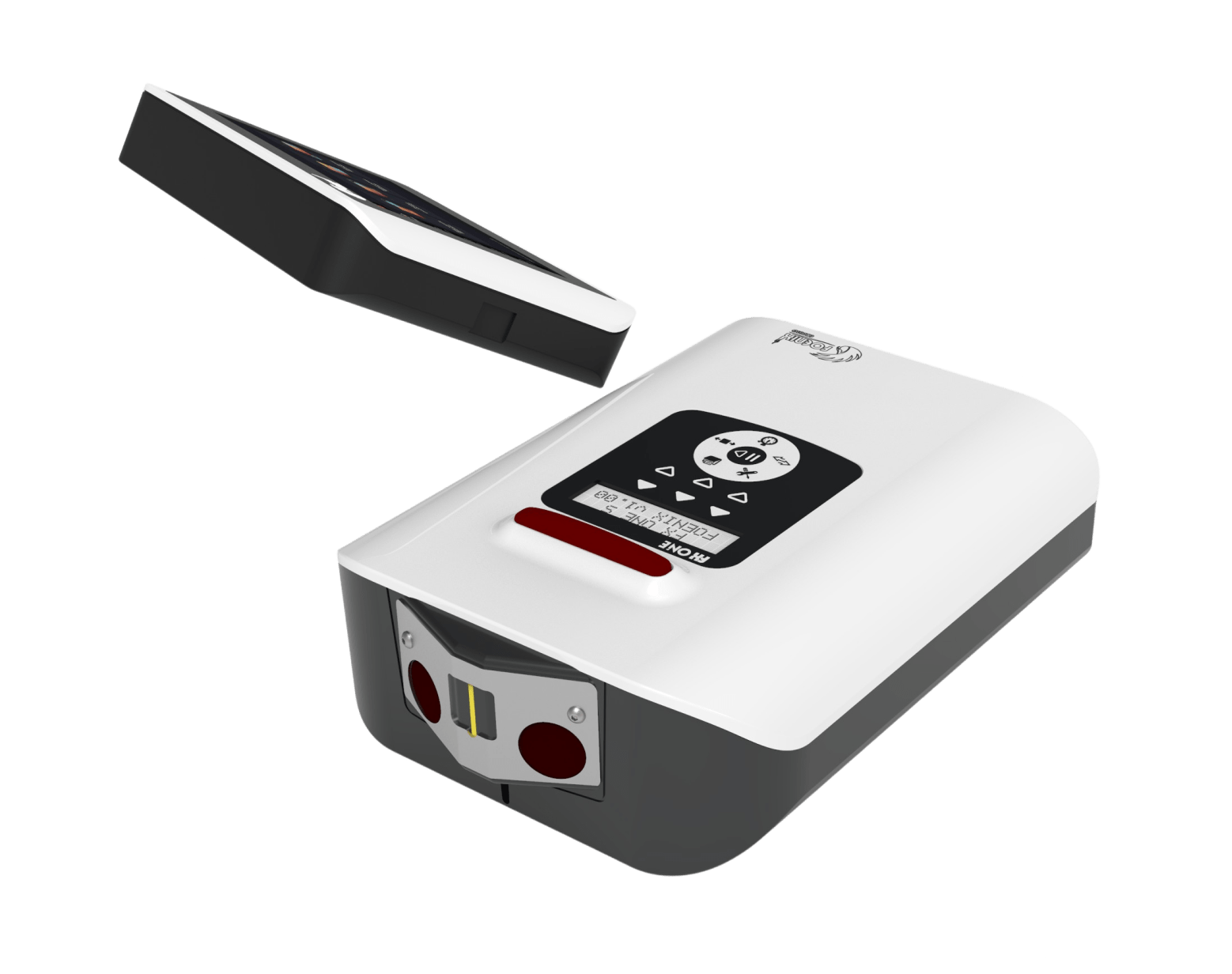

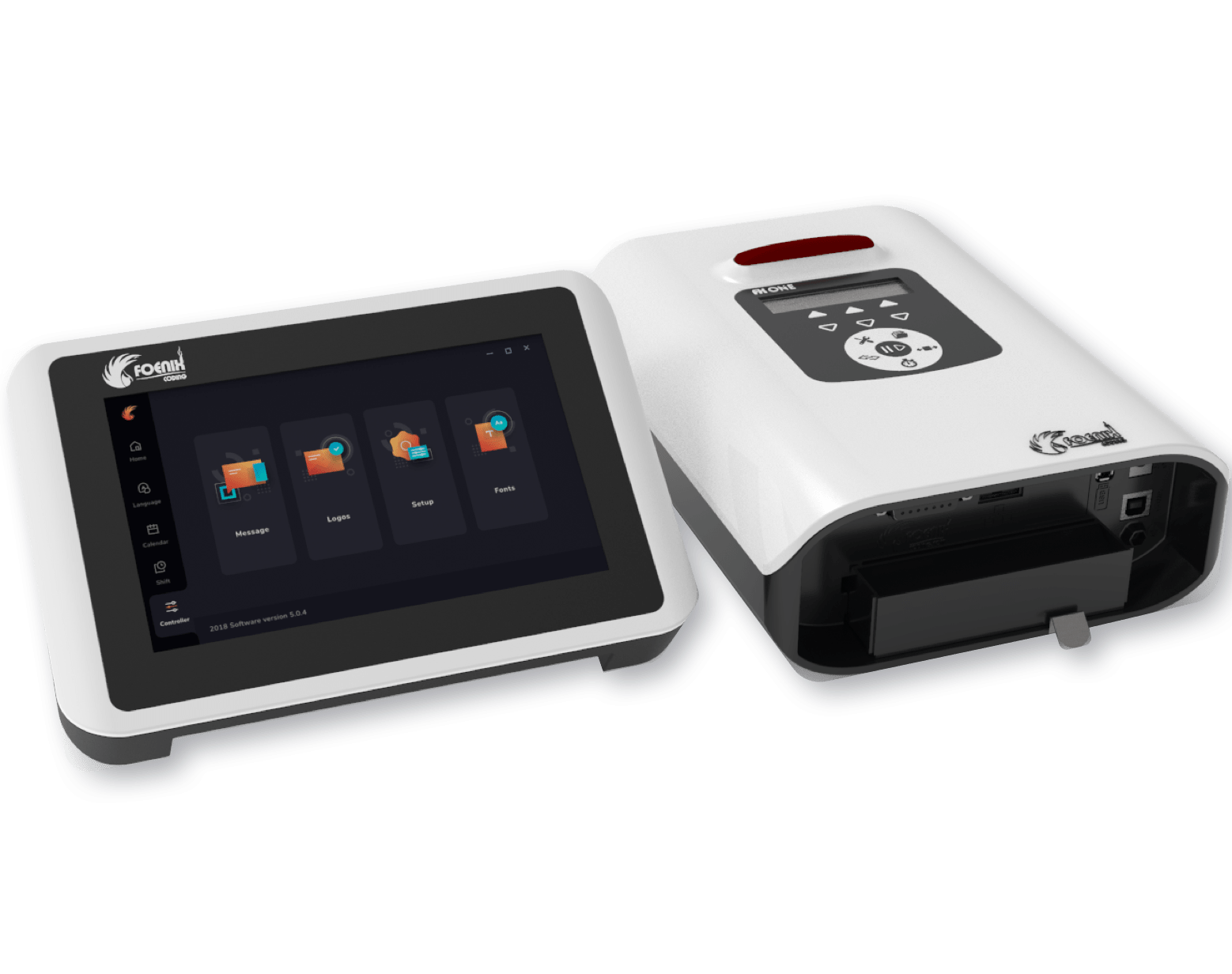

The compact and innovative industrial design of the FX ONE enables you to move the printer to different locations in minutes. Simply unplug it and move it. It works seamlessly with its large touch screen and all printing functions can be easily controlled. Just press the print button and start printing on anything.

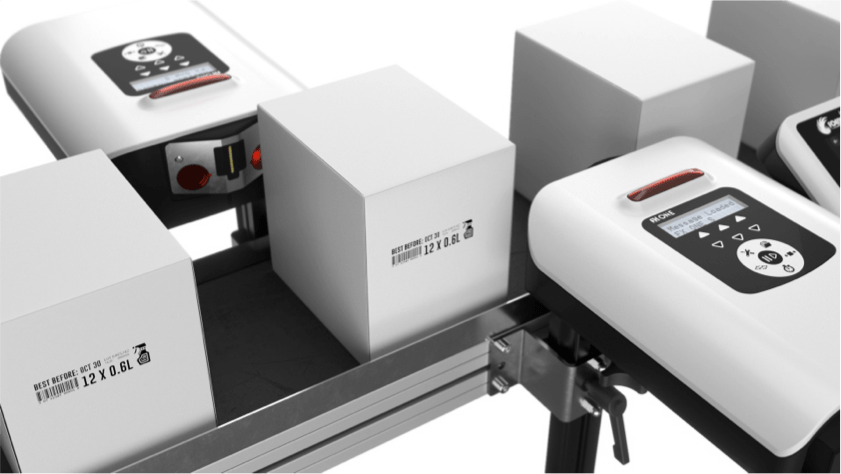

FX ONE printers can be connected to print on both sides of a carton with the same or different messages. High resolution printing combined with the ability to import any font style, graphics and print in any language will enhance your product image.
Full consolidation capability.
The Foenix FX APP software suite provides full integration capability for printer networking, database access, offline messaging, connection to industrial scanners, barcode readers, verifiers and other production equipment.
Message selection can be manual or secure using a barcode reader.
Advantages
- High Resolution Coding & Marking
1 to 8 lines of print, with a print height of 2-18 mm. - True Type & Unicode font
Enables the creation of messages in any font and in any language. - Graphics, Logos & Barcodes
Easily import JPEG, PNG & BMP graphics using the FX App. - 1D & 2D Barcodes
High resolution 1D and 2D barcode printing (QR Codes - data matrix) to include variable data. - Touch controller

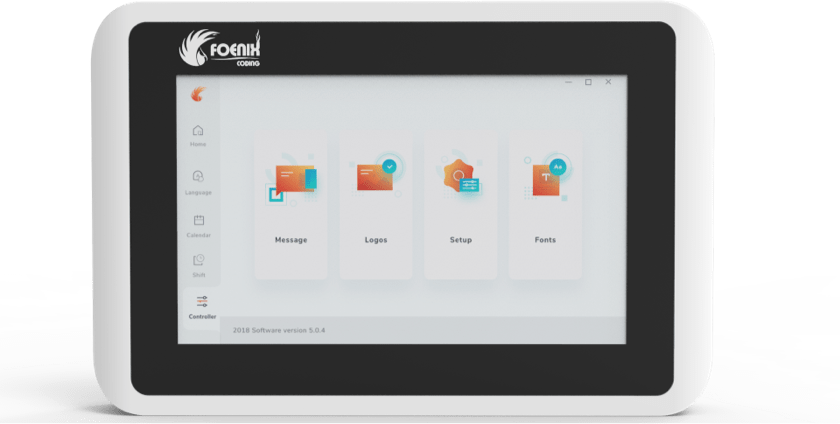

Simple interactive Windows programming with the FX App. Reliable one-click printing. - Computer connectivity
Via USB, RS485 or Ethernet cable for direct messaging or factory network system. - Multi-port connection
For encoders, external alarms and alternative product detection devices. - Networking
Manage multiple printers from one place. Monitor progress, track errors and get information with print analytics. - Easy Installation
With minimal components for maximum reliability. - 2 year warranty*
Extended warranty available
*Terms and conditions apply - Large solvent based ink catridge
Low coding costs and a clean ink system, ideal for printing on porous and non-porous surfaces. - Ink saving function
Reduce ink consumption by up to 75%.
Key Features
- Prints in any orientation.
- 1 to 8 lines of print.
- 2mm- 18mm total print height.
- High resolution peizo print head.
- Prints text, graphics, logos and barcodes.
- Prints the time and many date formats.
- Ability to continuously repeat printing.
- Printing speed 100m/min (50m/min for barcode and 2mm text).
- A print start/stop button.
- Visual alarm indication including low ink level.
- Control message width, delay and print direction.
- Product detection photocell.
- Weight 1.7 Kg (excluding ink cartridges and arms).
- Size 242 x 178 x 90 mm.
Connectivity
- RS232 και RS485 for Sauven Touch controller.
- USB-A memory stick included.
- USB-B for cable connection.
- Ethernet (optional).
- Prints text, graphics, logos and barcodes.
- Input/output port for encoder, alarm beacon and external photocells.
Ink
- Sealed replaceable ink tank (up to 15 million characters).
- Oil-based inks for porous surfaces.
- Solvent-based inks for non-porous surfaces.
- UV inks for direct LED curing.
- Various colours.
