Description

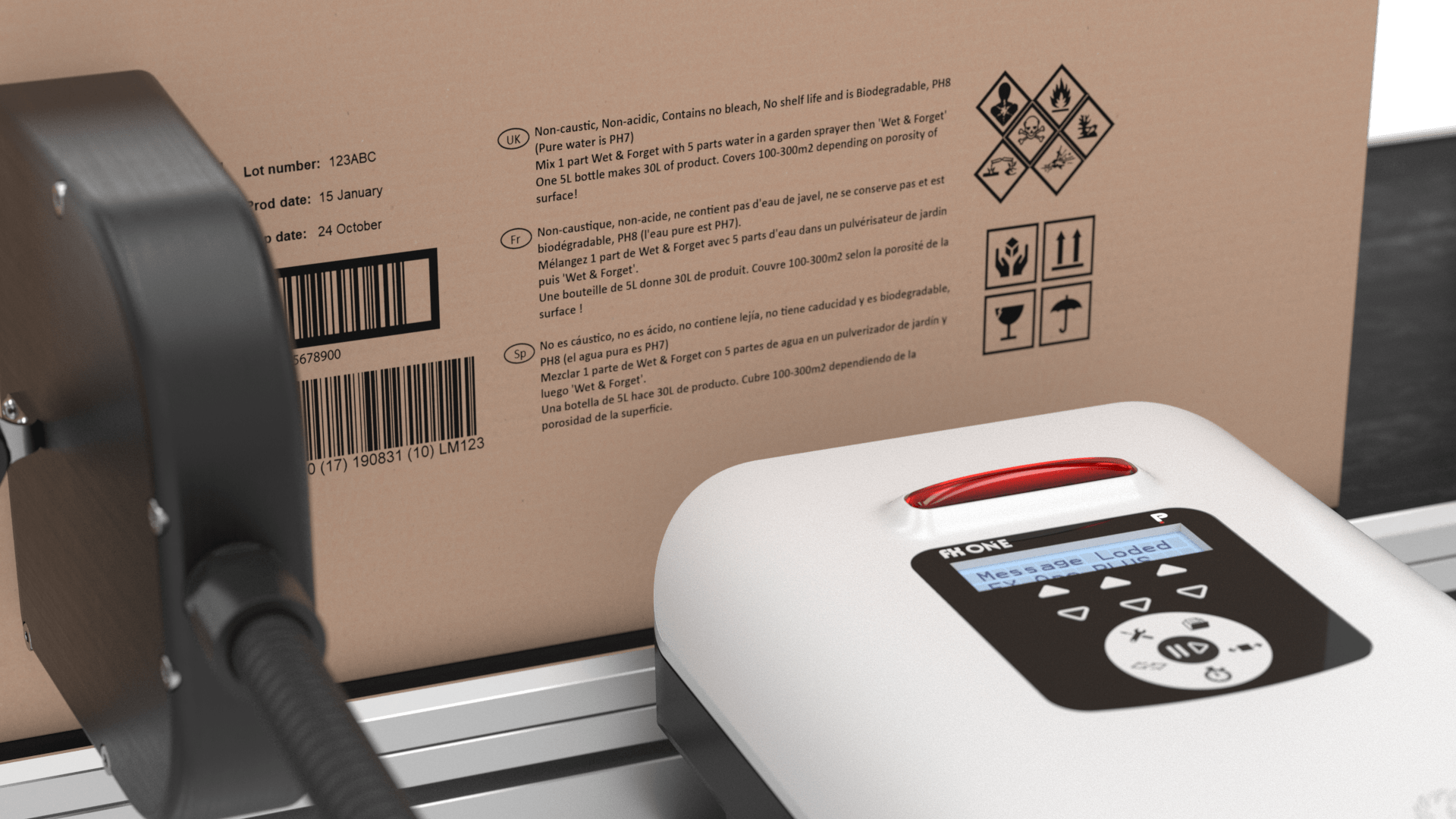

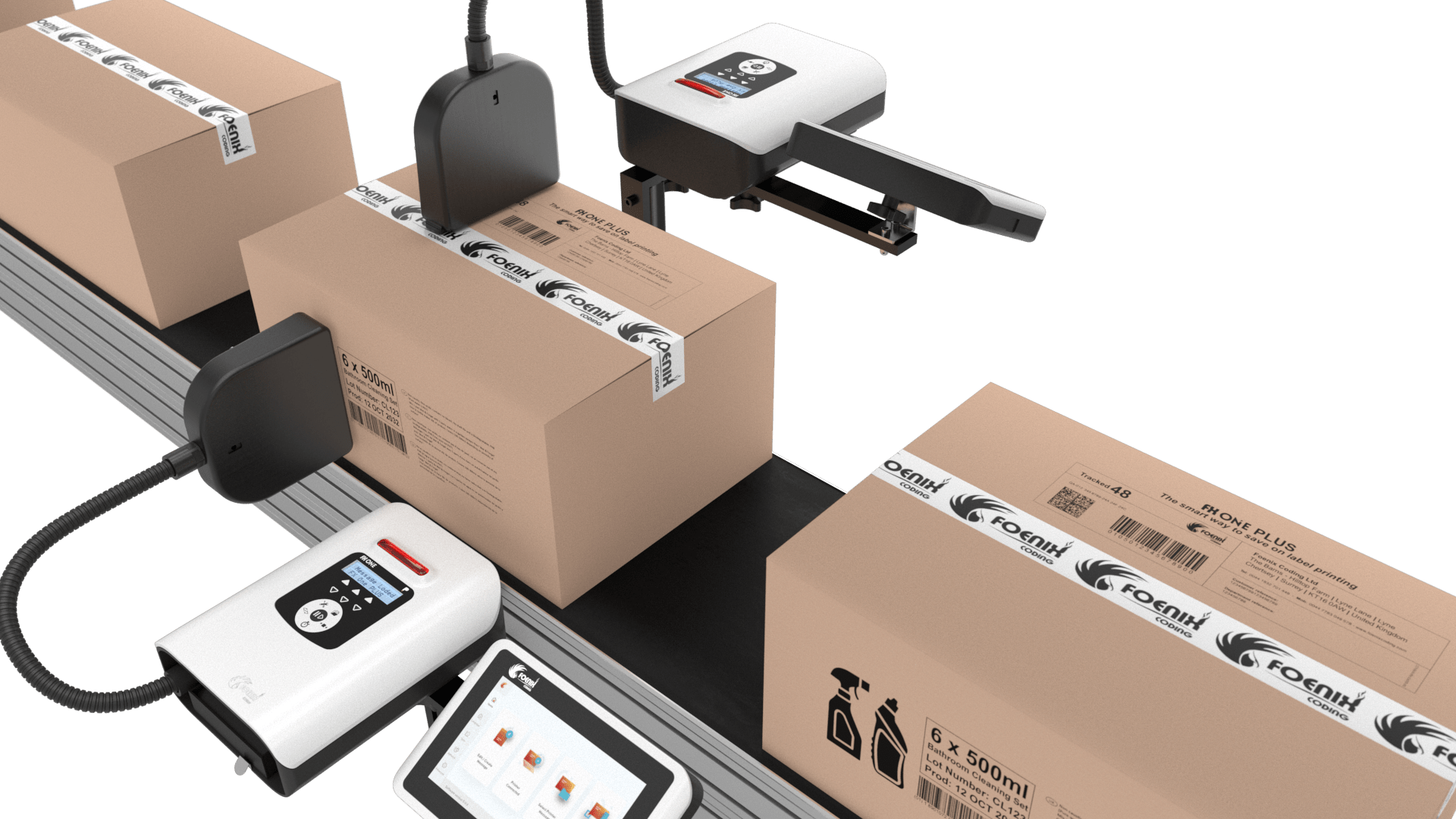

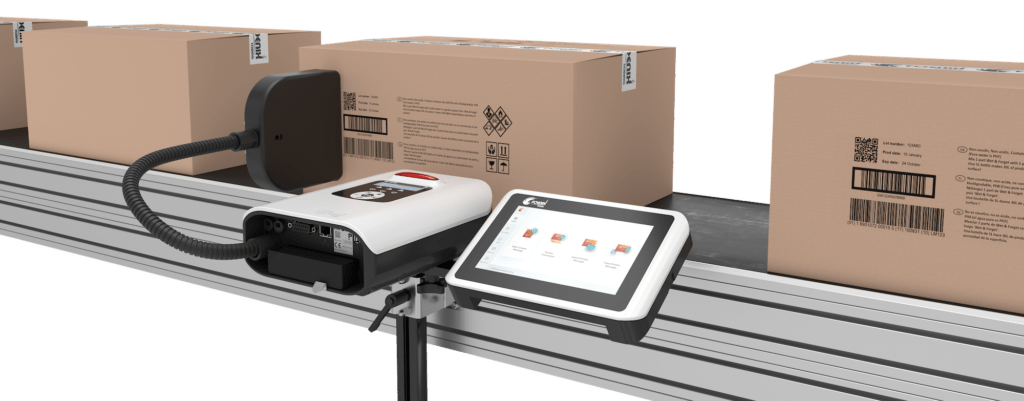

Huge cost savings by replacing labels and pre-printed packaging with high-resolution printing directly onto cartons - ideal for boxes, bags, trays, wooden pallets and more.

The smart solution for high-resolution packaging printing.

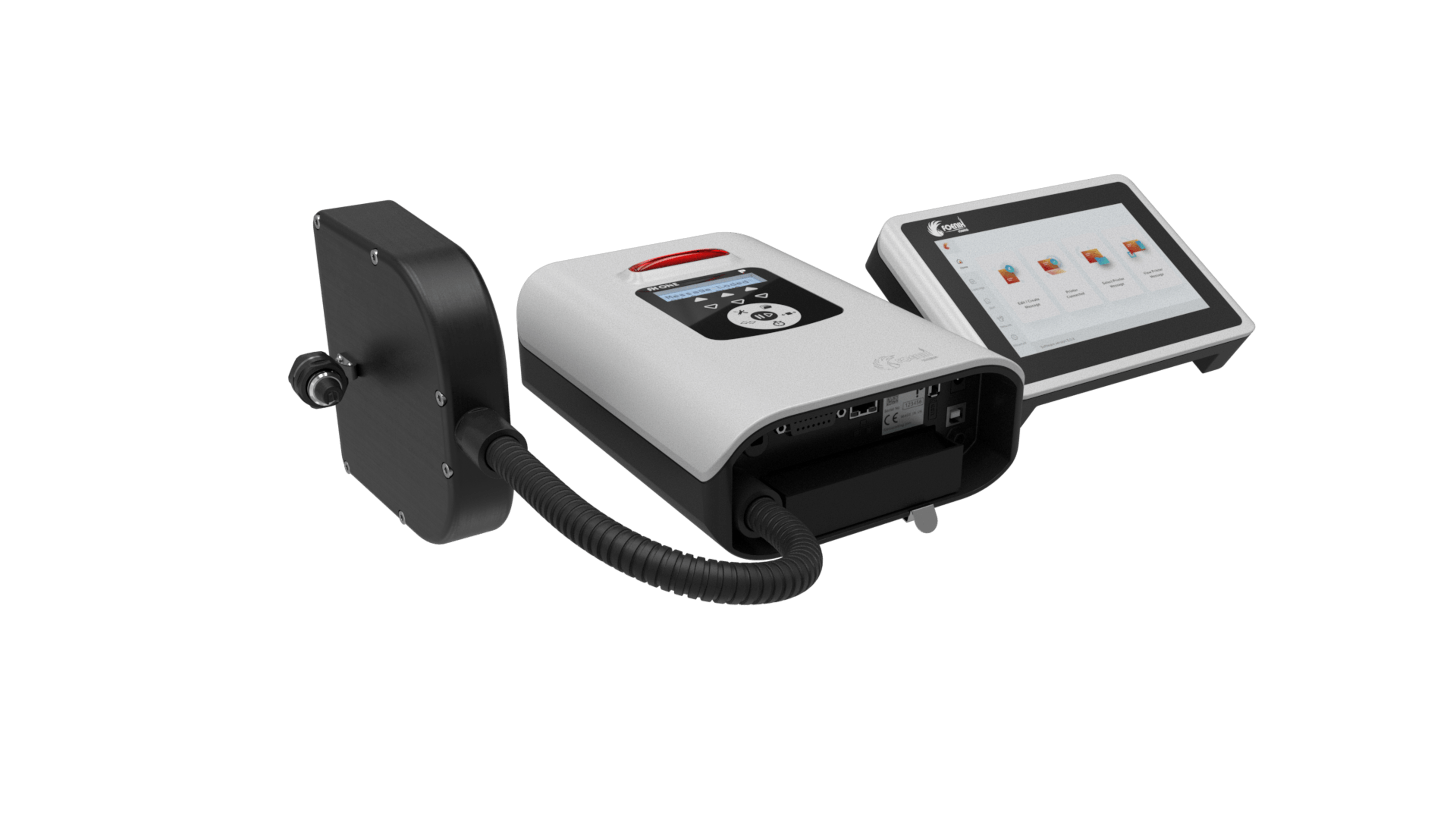

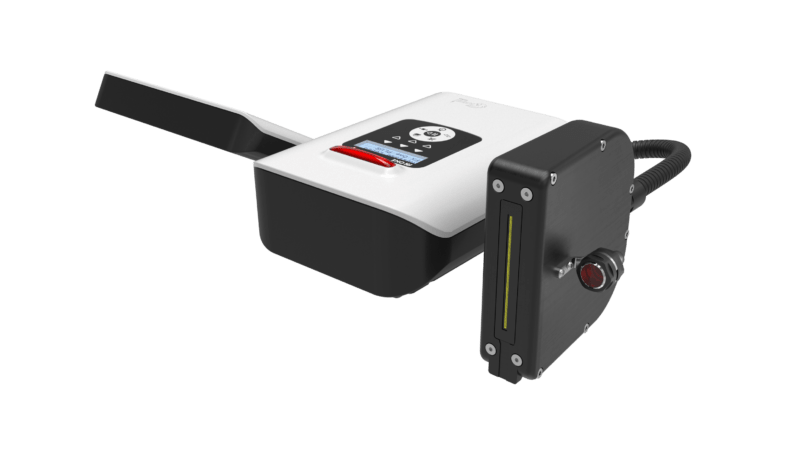

The FX ONE Plus large character inkjet printer gives the user control over the cost per print for label printing.

The Windows-based software was specifically designed with label printing in mind, an area where controlling cost per print is paramount. By printing directly to boxes instead of using labels, cost efficiency is dramatically increased.

Simple.

Designed for low-cost coding and marking on cartons and boxes, a real alternative to a label printer. No complicated start-up and shutdown procedures are required. Simply switch the machine off at the end of the day and switch it on again the next.

Powerful.

FX ONE Plus offers further integration flexibility and can be connected to databases, allows full remote control from existing production management software and offers full networking capability, including WiFi.

Versatile.

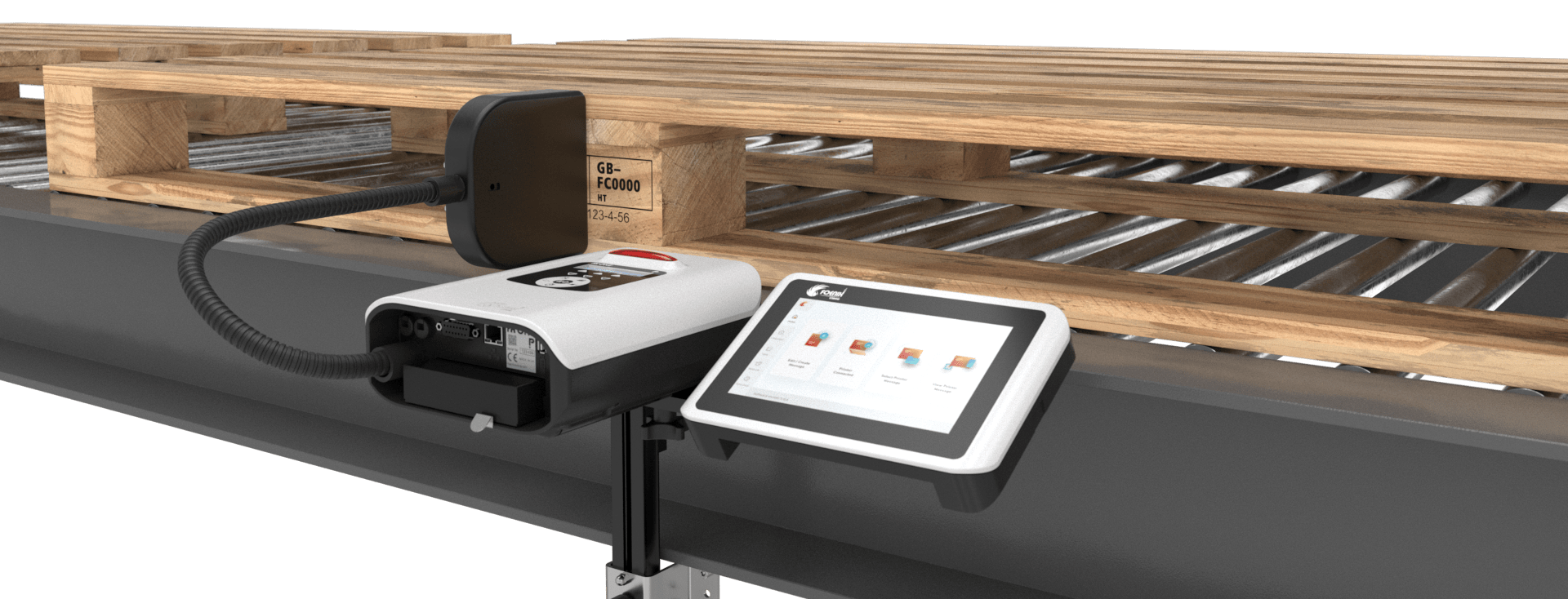

In addition to cartons, you can print on paper, wood, fabric, EPS, foam, concrete, etc.

Advantages

• High resolution coding and marking.
  1 to 30 lines of print, with a print height of 2-72 mm.
• True Type Font & Unicode
  Enables the creation of messages in any font and in any language.
• Graphics, Logos & Barcodes
  Easily import JPEG & BMP graphics using the FX App.
• 1D & 2D Barcodes
  High resolution 1D and 2D barcode printing (QR Codes - data matrix) to include variable data.

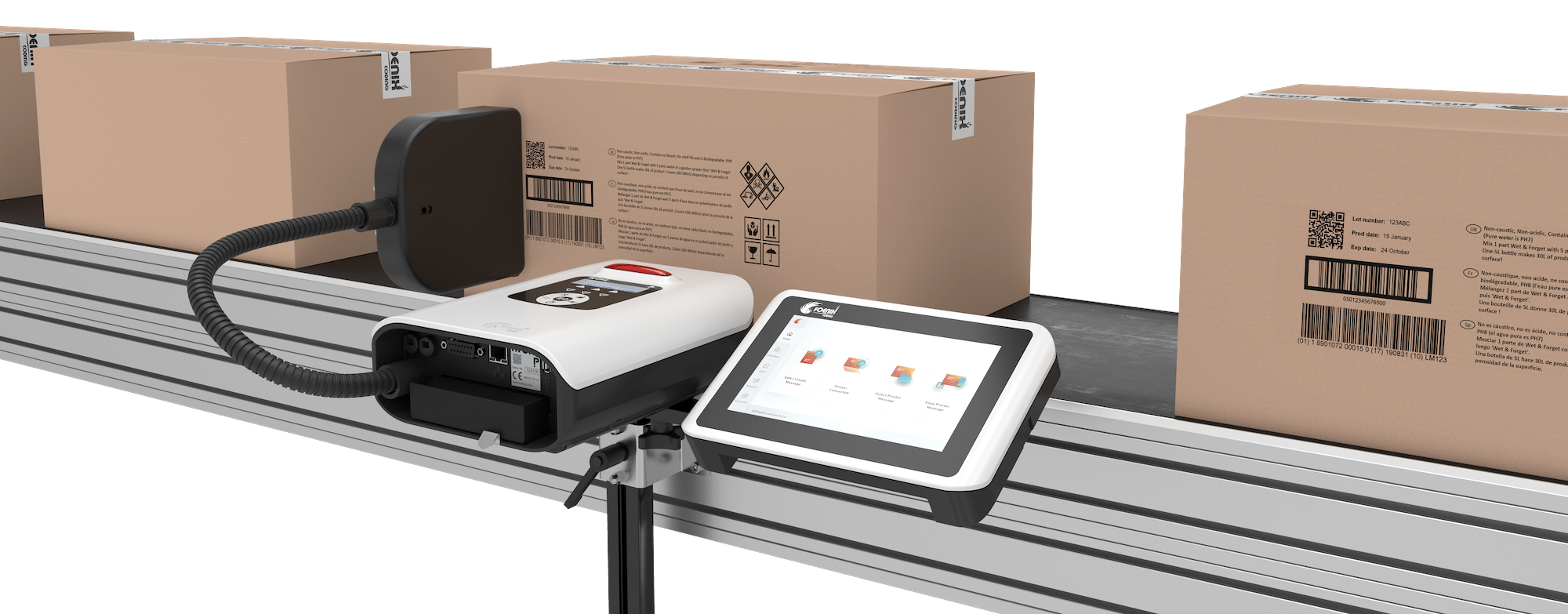

• Touch controller
  Simple interactive Windows programming with the FX App. Reliable one-click printing.
• Computer connectivity
  Via USB or Ethernet cable for direct messaging or factory network system.
• Multi-port connection
  For encoders, external alarms and alternative product detection devices.
• Networking
  Manage multiple printers from one place. Monitor progress, track errors and get information with print analytics.
• Out of the Box Installation
  With minimal components for maximum reliability.
• 2 Years Warranty
  Extend it for one, two or three more years.
• Large ink tank
  Low coding costs and a clean ink system, ideal for printing on porous surfaces.
• Ink Saver Mode
  Reduce ink consumption by up to 75%.

Key Features

• Prints in any orientation.
• 1 to 30 lines of print.
• 2mm - 72mm total print height.

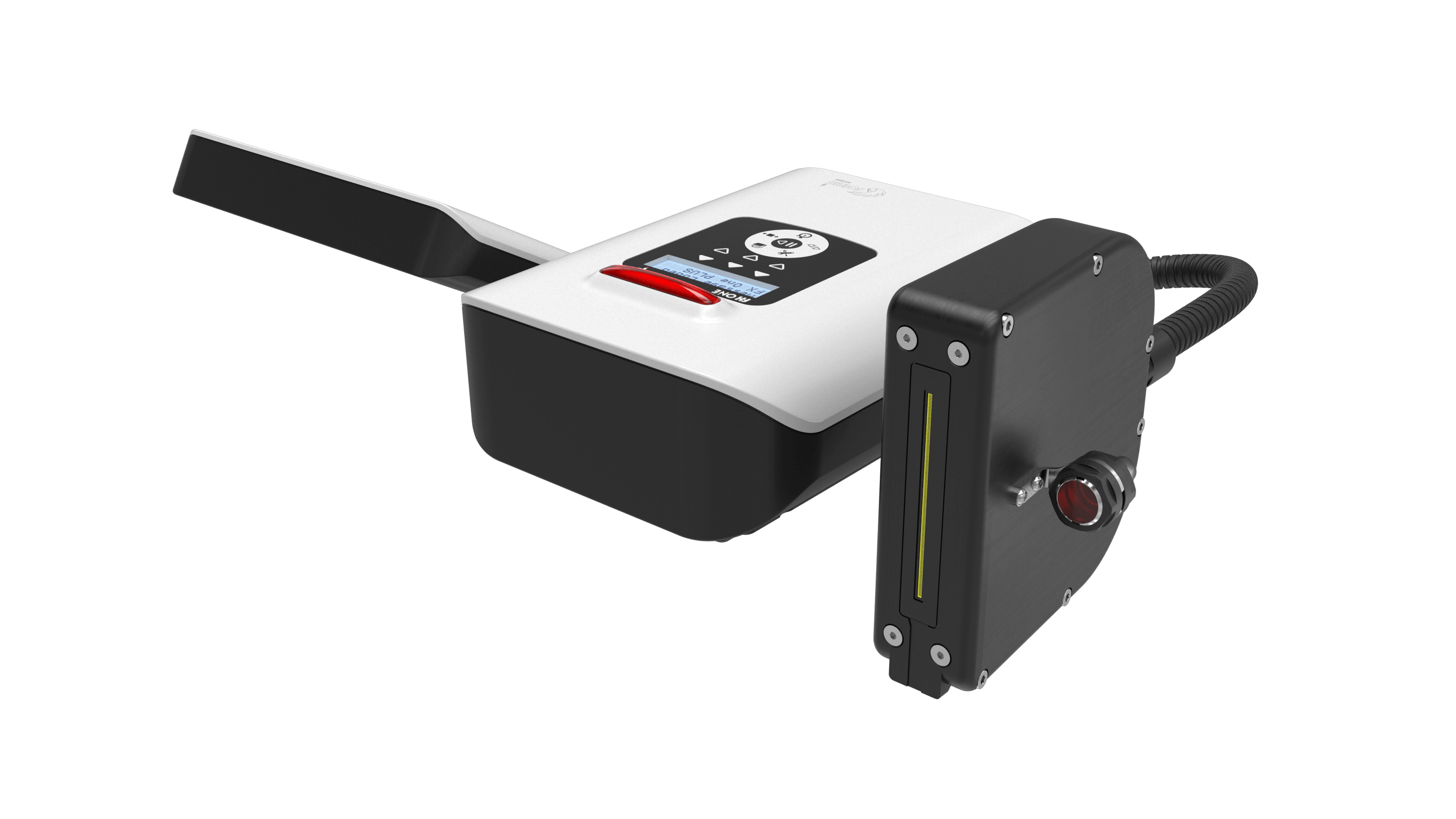

• High resolution peizo print head.
• Prints text, graphics, logos and barcodes.
• Prints the time and many date formats.
• Ability to continuously repeat printing.
• Printing speed 60m/min.
• A print start/stop button.

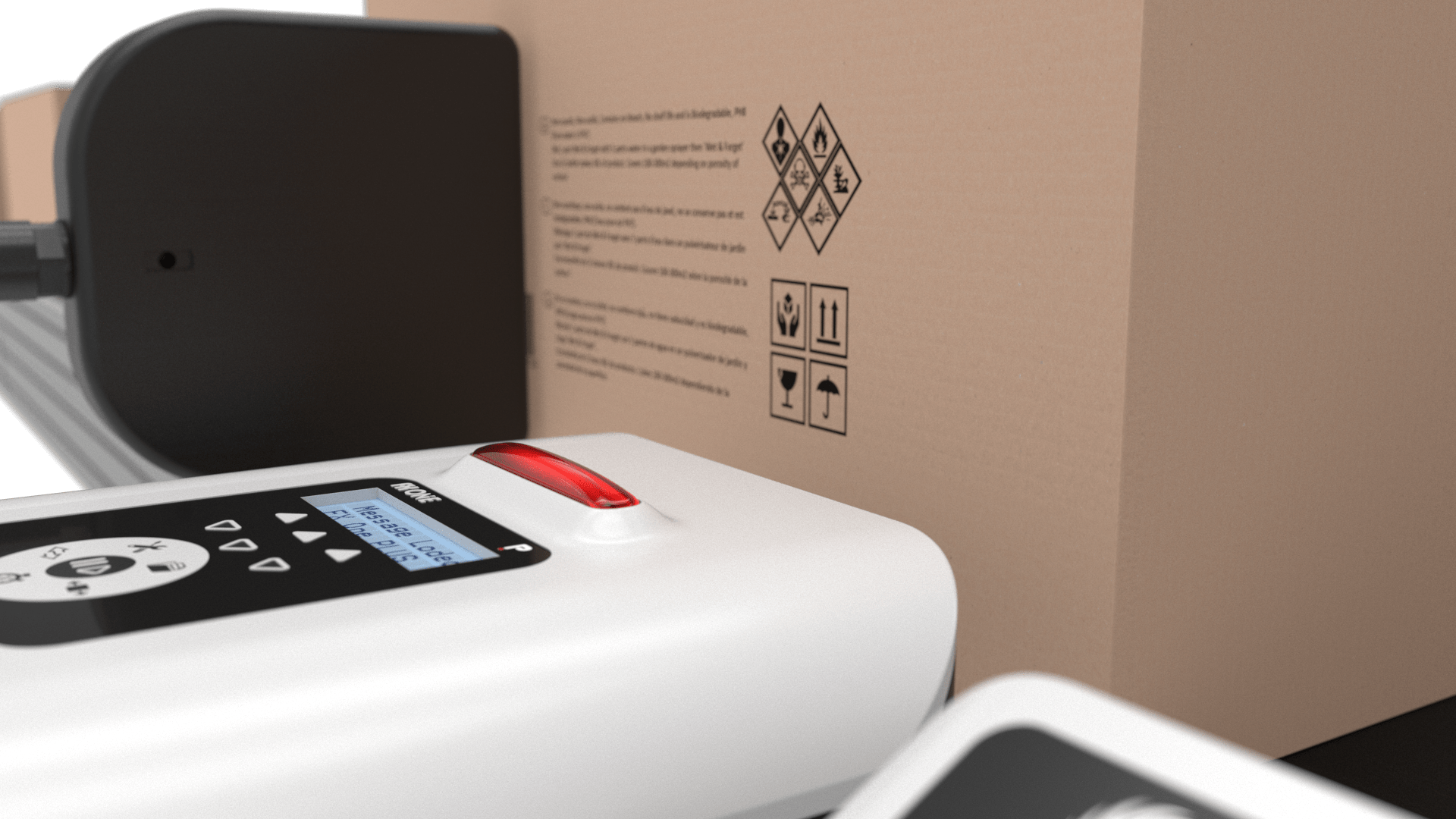

• Visual alarm indication including low ink level.
• Control message width, delay and print direction.
• Product detection photocell.
• Weight 1.9 Kg (excluding ink tank and supports).
• Size 242 x 178 x 90 mm.

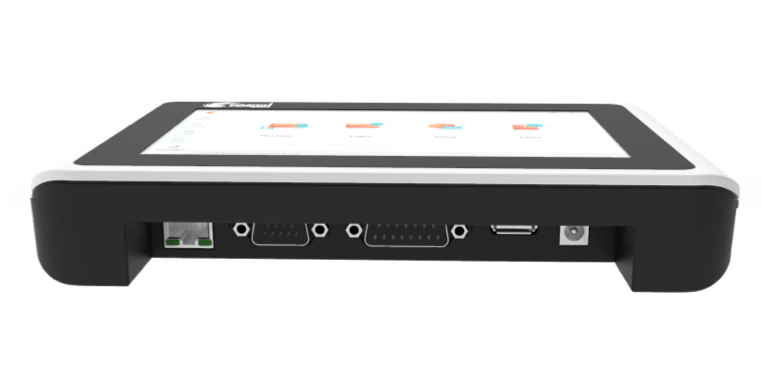

Connectivity

• RS232 και RS485 for Sauven Touch controller.
• USB-A memory stick included.
• USB-B for cable connection.
• Ethernet (optional).
• Prints text, graphics, logos and barcodes.
• Input/output port for encoder, alarm beacon and external photocells.

Ink

• Sealed replaceable ink tank (up to 15 million characters).
• Oil-based inks for porous surfaces.
• Solvent-based inks for non-porous surfaces.
• UV inks for direct LED curing.
• Various colours.

Electrical

• A 90-260 VAC to 24 VDC power supply is included.
