Description

Applications

Codaprint is used to apply identification marks, use by dates, recycling logos, customer product names etc... to continuously moving or indexing material and where repeat printing is required. Some typical applications are in extruded film, bag printing, steel sheet, plastic window extrusion, shrink wrap films, cardboard core windings, drywall, edge board, cardboard, mirror backs and paper.

Simple installation

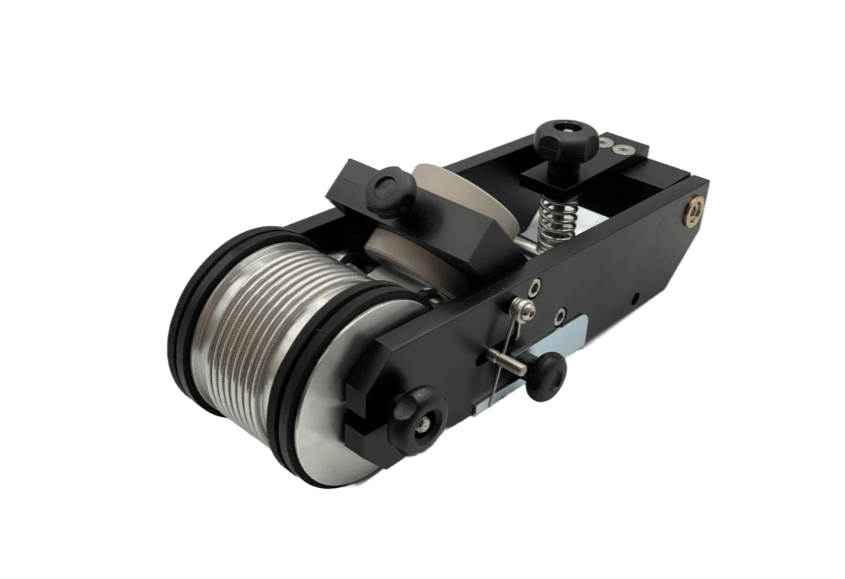

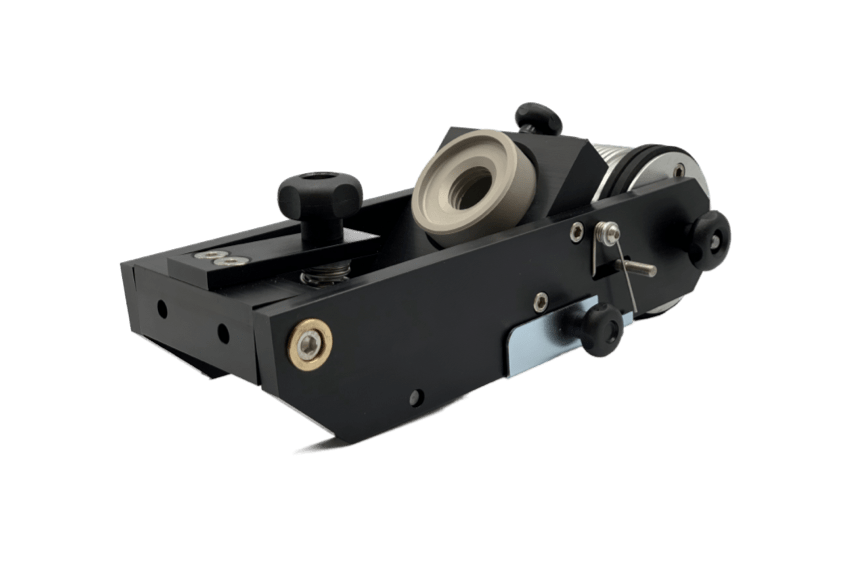

Codaprint is easily placed in a fixed line along the material to be marked. The vertical adjustment on the unit provides print on/off positions. The printer is driven by the friction contact between the rubber tires on the press drum and the material.

Inks

Ink cartridges are available in a range of ink types and colours to suit most surfaces. We can advise on the most suitable range for your product.

Printing option

The standard Codaprint type drum is fitted with metal locking rings for use with interchangeable rubber type Baselock. Baselock is available in many character styles and custom logos for quick change of print.

Carrying cases

The Codaprint ink pot head should be supplied with a complete set of transfer pads each time a new ink pot is used.

• TPS030: For minimum ink flow.
• TPS060: For maximum ink flow.

Manual

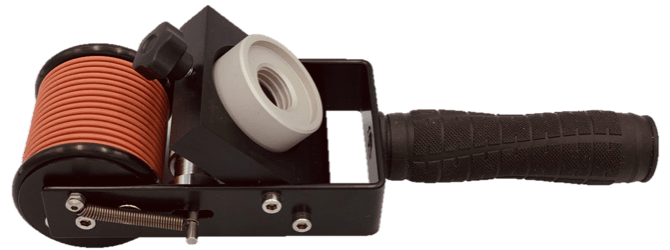

The Codaprint hand roller is intended for manual printing on all surfaces with the same range of fast drying inks.

Codaprint printer specifications

Codaprint tapes

• CP111 Black Standard Dye ink for non-porous materials.
• CP011 Black Ultra fast drying paint roller for high-speed non-porous materials.
• Black Dye Ink CP5610 for porous surfaces.
• CP256 White Pigmented ink for dark surfaces, porous and non-porous materials.

A choice of colors is available in each series.

Measurements

Advantages

• Foenix Codaprint
  A unique printer for continuous printing on metal, plastic or porous materials such as steel sheets, extruded film, plastic tubes and cardboard core windings.
• Ink cartridge
  Our standard ink cartridges are suitable for metal, glass, plastic and porous surfaces and other materials. Some applications require a special ink.
• Low cost printer
  The simplest low-cost printer for applying repetitive identification marks, date use, recycling logos or customer product names to constantly moving material.
• High-speed printing
  The printer can operate at a very low speed but can print up to 100 meters per minute.
• Simple ink system
  The ink is contained in a replaceable ink tank that has built-in ink control, regardless of print speed, providing a clean, low-maintenance ink system. This unique ink system ensures that the print does not fade until the tank is empty.

Key Features

• The printer is driven by tires on the press drum that contacts the material, eliminating the need for mechanical or electrical drive.
• Continuous roller encoder ideal for: Batch number, date and logo printing.
• The printer is easily placed either on top of the moving material to be marked or on top of a damaged spool of material.
• Print height can be up to 25 mm using either interchangeable Baselock Type or flat stereo.
• Four repeatable print lengths are available up to 460 mm.
